LTS1180-104, LTS-1180-101 - Photoelectric proximity switch

CONTRINEX

Datasheet Details

Part number: LTS1180-104, LTS-1180-101
Manufacturer: CONTRINEX
File Size: 267.06 KB

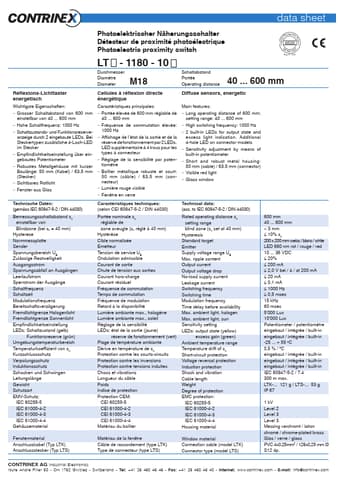

Datasheet: LTS-1180-101_CONTRINEX.pdf
Description: Photoelectric proximity switch
Note: This datasheet PDF includes multiple part numbers: LTS1180-104, LTS-1180-101.
Please refer to the document for exact specifications by model.

Long operating distance of 600 mm; setting range: 40 600 mm.
High switching frequency: 1000 Hz.
2 built-in LEDs for output state and excess light indication. Additional 4-hole LED on connector models.
Sensitivity adjustment by means of built-in potentiometer.
Short and robust metal housing: 50 mm (cable) / 63.5 mm (connector).
Visible red light.
Glass window Technical data: (acc. to IEC 60947-5-2 / DIN 44030) Rated operating dist.
