KL-170YGX Datasheet - COSMO Electronics

KL-170YGX MOISTURE SENSITIVE devices

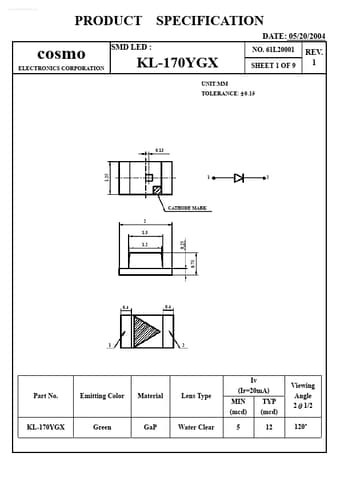

www.DataSheet4U.com PRODUCT SPECIFICATION DATE: 05/20/2004 NO. 61L20001 SHEET 1 OF 9 cosmo ELECTRONICS CORPORATION SMD LED : KL-170YGX UNIT:MM REV. 1 TOLERANCE: ± 0.15 0.13 1.25 1 2 CATHODE MARK 2 1.3 1.2 0.25 0.4 2 0.75 0.4 1 Part No. Emitting Color Material Lens Type Iv (IF=20mA) MIN (mcd) 5 TYP (mcd) 12 Viewing Angle 2θ1/2 120∘ KL-170YGX Green GaP Water Clear PRODUCT SPECIFICATION DATE: 05/20/2004 NO. 61L20001 SHEET 2 OF 9 REV. 1 cosmo ELECTRONICS CORPORATION SMD LED.

KL-170YGX_COSMOElectronics.pdf
