KW1S50FC - Photo Interrupter

KW1S50FC Description

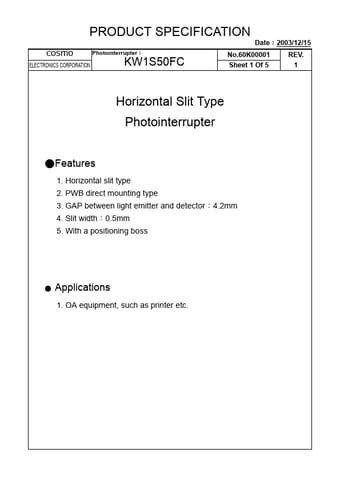

PRODUCT SPECIFICATION Date：2003/12/15 cosmo Photointerrupter： ELECTRONICS CORPORATION KW1S50FC No.60K00001 Sheet 1 Of 5 REV.1 Horizontal Slit.

KW1S50FC Features

* 1. Horizontal slit type 2. PWB direct mounting type 3. GAP between light emitter and detector：4.2mm 4. Slit width：0.5mm 5. With a positioning boss

KW1S50FC Applications

* 1. OA equipment, such as printer etc. PRODUCT SPECIFICATION Date：2003/12/15 cosmo Photointerrupter： ELECTRONICS CORPORATION KW1S50FC No.60K00001 Sheet 2 Of 5 REV. 1 Outside Dimension： （Unit：mm） 4.2 5.2 13.5± 0.10 BA BB'section AA'section Optical axis center B' A' 9.3 6.8 10.0± 1.00

📥 Download Datasheet

Preview of KW1S50FC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KW1S50FC
Manufacturer
COSMO Electronics
File Size
148.81 KB
Datasheet
KW1S50FC_COSMOElectronics.pdf
Description
Photo Interrupter
