CRG40T120AK5HDZ - Silicon FS Trench IGBT

Description

Using owner proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

RoHS Compliant.

Features

  • FS Trench Technology, Positive temperature coefficient.
  • Low saturation voltage： VCE(sat),TYP=1.70V @IC=40A,VGE=15V； VCES 1200 V IC 40 A Ptot （TC=25℃） 294 W VCE(sat) 1.70 V Outline ：TO-247.

📥 Download Datasheet

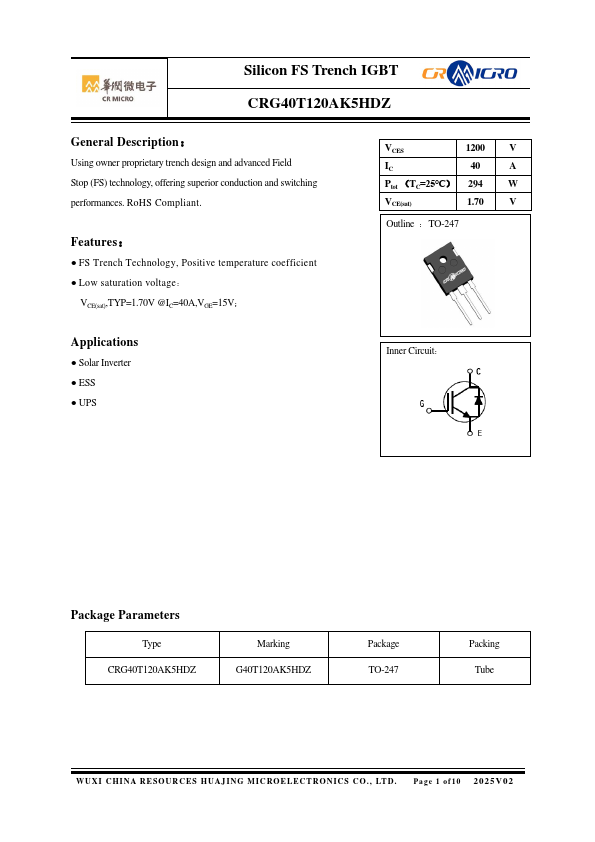

Datasheet preview – CRG40T120AK5HDZ

Datasheet Details

Part number CRG40T120AK5HDZ
Manufacturer CR Micro
File Size 975.13 KB
Description Silicon FS Trench IGBT
Datasheet download datasheet CRG40T120AK5HDZ Datasheet

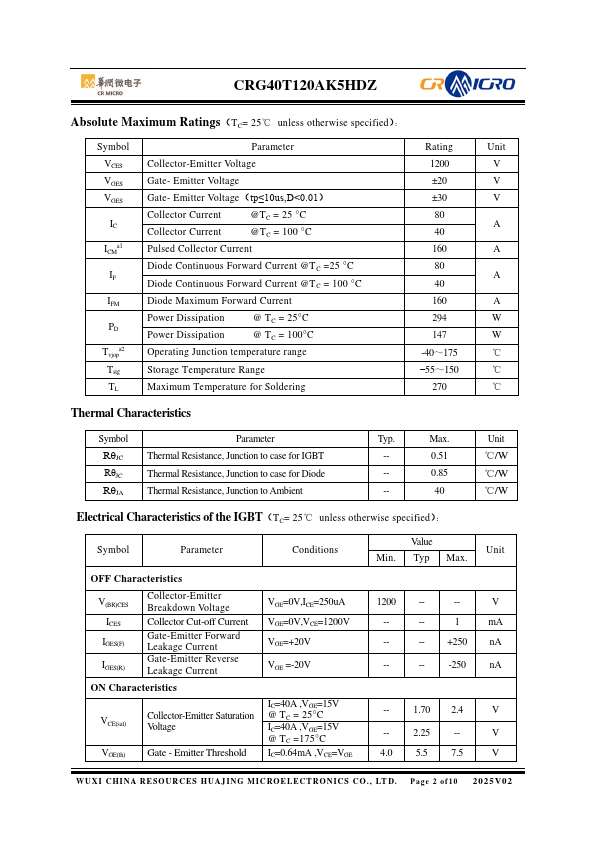

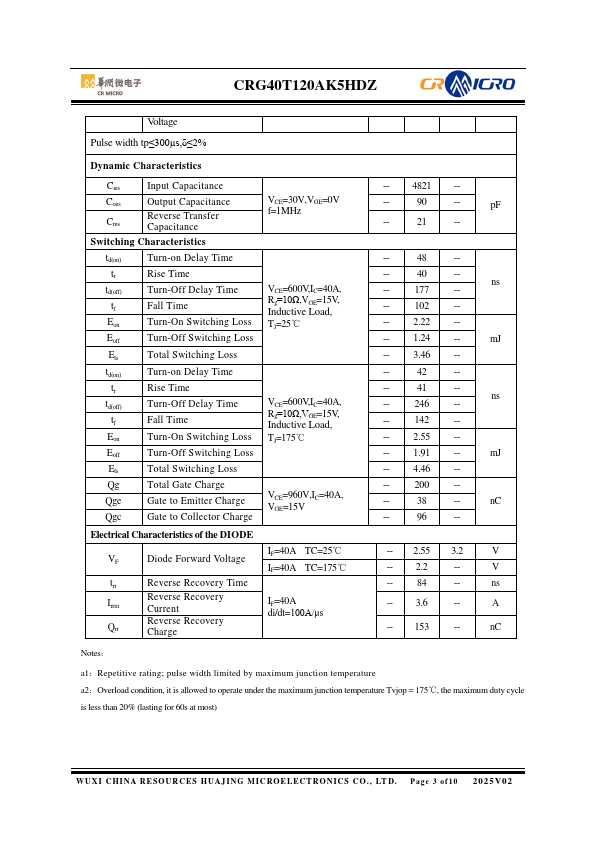

Additional preview pages of the CRG40T120AK5HDZ datasheet.

📁 Similar Datasheet

  • CRG01 - Rectifier (Toshiba Semiconductor)
  • CRG02 - Rectifier (Toshiba Semiconductor)
  • CRG0201 - Thick Film Chip Resistors (TE)
  • CRG04 - Rectifier Diode (Toshiba)
  • CRG0402 - Thick Film Chip Resistors (TE)
  • CRG04A - Rectifier Diode (Toshiba)
  • CRG05 - Rectifier (Toshiba)
  • CRG0603 - Thick Film Chip Resistors (TE)
  • CRG0805 - Thick Film Chip Resistors (TE)
  • CRG10A - Rectifier Diode (Toshiba)
Other Datasheets by CR Micro

Full PDF Text Transcription

Click to expand full text
Silicon FS Trench IGBT CRG40T120AK5HDZ General Description： Using owner proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances. RoHS Compliant. Features： ● FS Trench Technology, Positive temperature coefficient ● Low saturation voltage： VCE(sat),TYP=1.70V @IC=40A,VGE=15V； VCES 1200 V IC 40 A Ptot （TC=25℃） 294 W VCE(sat) 1.70 V Outline ：TO-247 Applications ● Solar Inverter ● ESS ● UPS Inner Circuit： Package Parameters Type CRG40T120AK5HDZ Marking G40T120AK5HDZ Package TO-247 Packing Tube WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO., LTD.
