CRM25TD07R1 - 250V 7A 3-phase Integrated Power Modules

CR Micro

📥 Download Datasheet

CRM25TD07R1 Datasheet Preview — Preview of CRM25TD07R1 PDF

Datasheet Details

Part number: CRM25TD07R1
Manufacturer: CR Micro
File Size: 248.16 KB
Datasheet: CRM25TD07R1-CRMicro.pdf
Description: 250V 7A 3-phase Integrated Power Modules

CRM25TD07R1 Product details

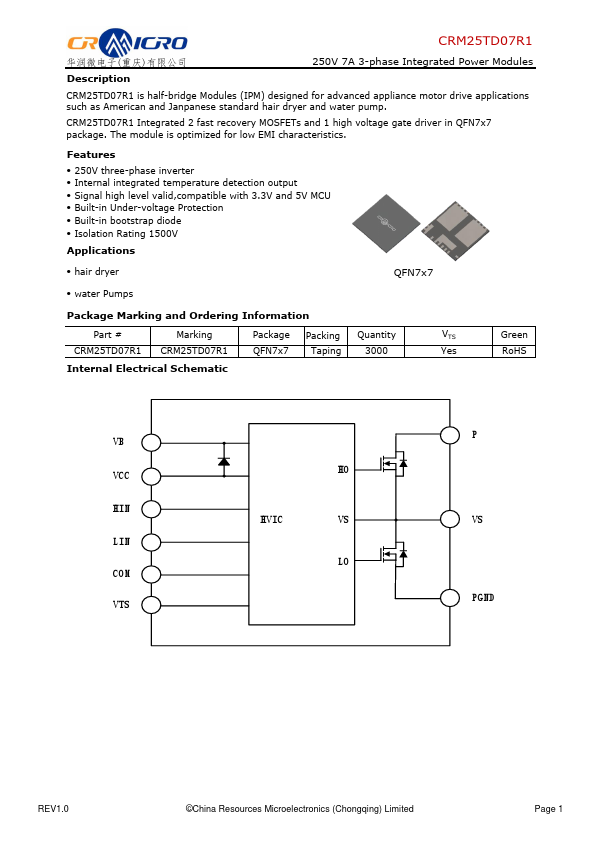

Description

CRM25TD07R1 is half-bridge Modules (IPM) designed for advanced appliance motor drive applications such as American and Janpanese standard hair dryer and water pump.

Features

250V three-phase inverter.
Internal integrated temperature detection output.
Signal high level valid,compatible with 3.3V and 5V MCU.
Built-in Under-voltage Protection.
Built-in bootstrap diode.
Isolation Rating 1500V.
