CRM50TA04E1 - 500V 4A 3-phase IPM

CR Micro

📥 Download Datasheet

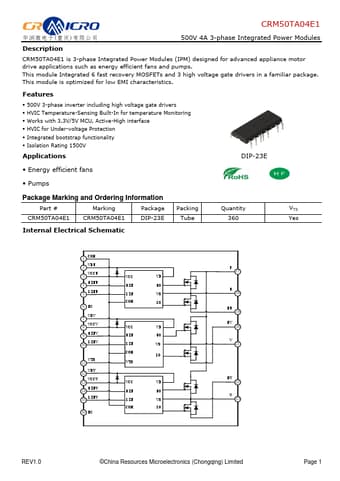

CRM50TA04E1 Datasheet Preview — Preview of CRM50TA04E1 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CRM50TA04E1
Manufacturer: CR Micro
File Size: 275.29 KB
Datasheet: CRM50TA04E1-CRMicro.pdf
Description: 500V 4A 3-phase IPM

CRM50TA04E1 Product details

Description

CRM50TA04E1 is 3-phase Integrated Power Modules (IPM) designed for advanced appliance motor drive applications such as energy efficient fans and pumps.

Features

500V 3-phase inverter including high voltage gate drivers.
HVIC Temperature-Sensing Built-In for temperature Monitoring.
Works with 3.3V/5V MCU, Active-High interface.
HVIC for Under-voltage Protection.
Integrated bootstrap functionality.
Isolation Rating 1500V.
