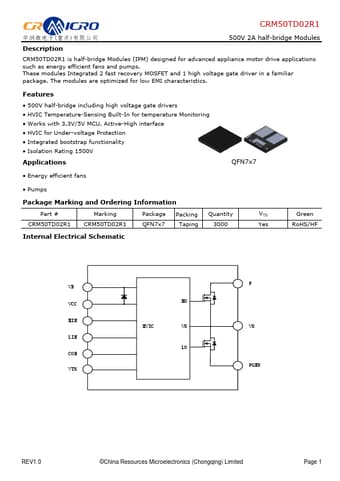

CRM50TD02R1 Datasheet, Half-bridge, CR Micro

CRM50TD02R1 Features

• Half-bridge
• 500V half-bridge including high voltage gate drivers
• HVIC Temperature-Sensing Built-In for temperature Monitoring
• Works with 3.3V/5V MCU, Active-High inter

PDF File Details

Part number:

CRM50TD02R1

Manufacturer:

CR Micro

File Size:

217.64kb

Download:

📄 Datasheet

Description:

500v 2a half-bridge. CRM50TD02R1 is half-bridge Modules (IPM) designed for advanced appliance motor drive applications such as energy efficient fans and

CRM50TD02R1 Application

• Applications such as energy efficient fans and pumps. These modules Integrated 2 fast recovery MOSFET and 1 high voltage gate driver in a familiar p
