CRM60GH20E4 600V 20A 3-phase IPM

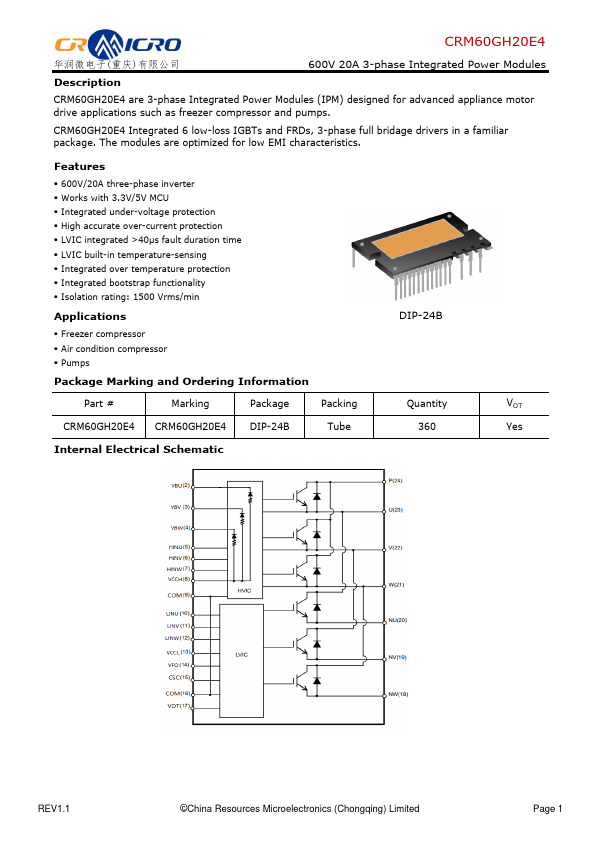

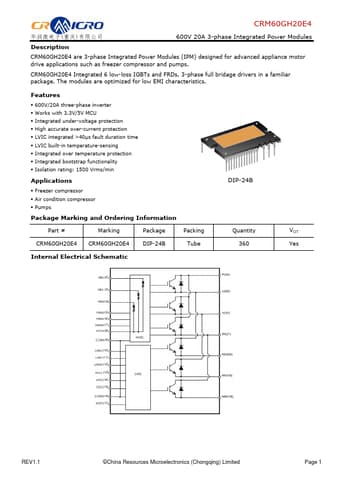

CRM60GH20E4 are 3-phase Integrated Power Modules (IPM) designed for advanced appliance motor drive applications such as freezer compressor and pumps. CRM60GH20E4 Integrated 6 low-loss IGBTs and FRDs, 3-phase full bridge drivers in a familiar package. The modules are optimized for low EMI character.

CRM60GH20E4 Features

* 600V/20A three-phase inverter

* Works with 3.3V/5V MCU

* Integrated under-voltage protection

* Integrated high accurate short-circuit current protection

* Integrated >40μs fault duration time

* Integrated built-in temperature-sensing

* Integr

CRM60GH20E4-CRMicro.pdf

CRM60GH20E4 Datasheet Preview — Preview of CRM60GH20E4 PDF

Datasheet Details

Part number:

CRM60GH20E4

Manufacturer:

CR Micro

File Size:

556.32 KB

Description:

600v 20a 3-phase ipm.
