CRMM4614C 30V Complementary Power MOSFET

CR Micro

Description

() .

📥 Download Datasheet

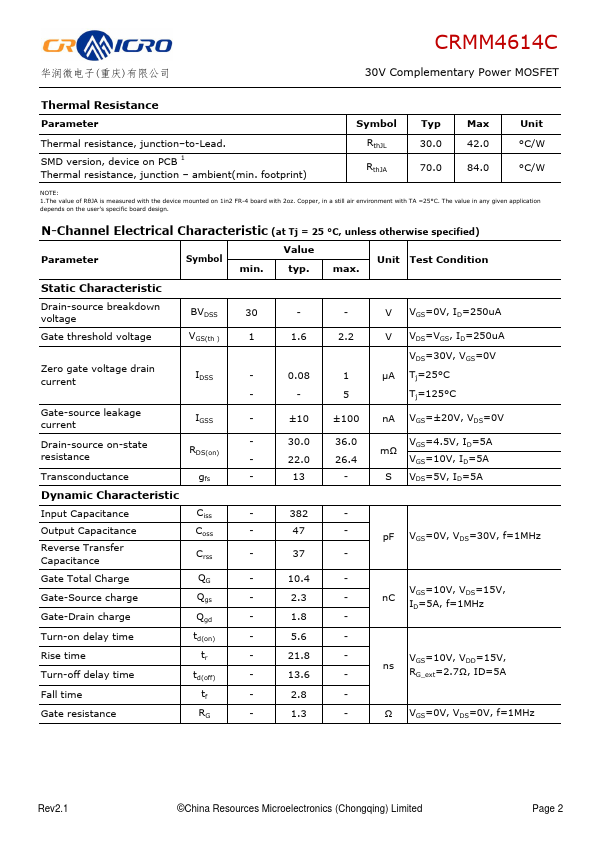

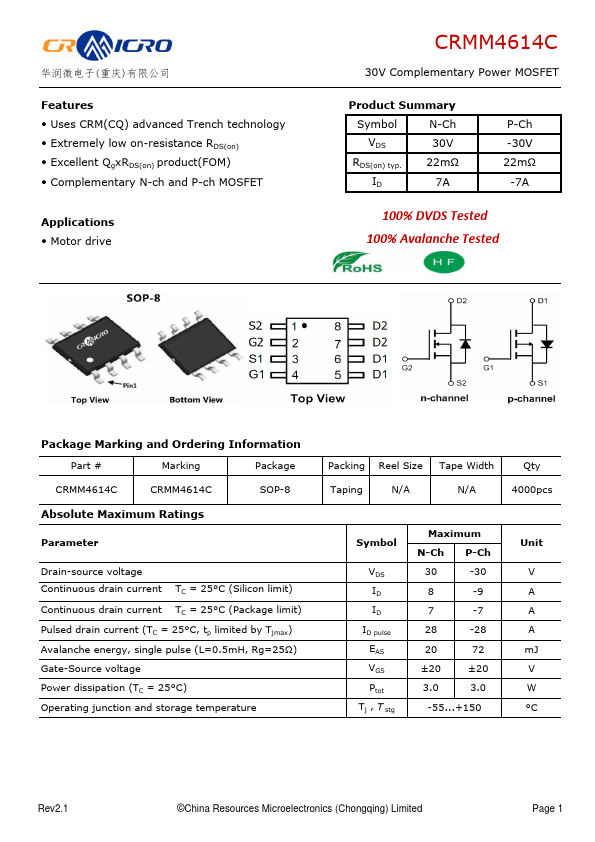

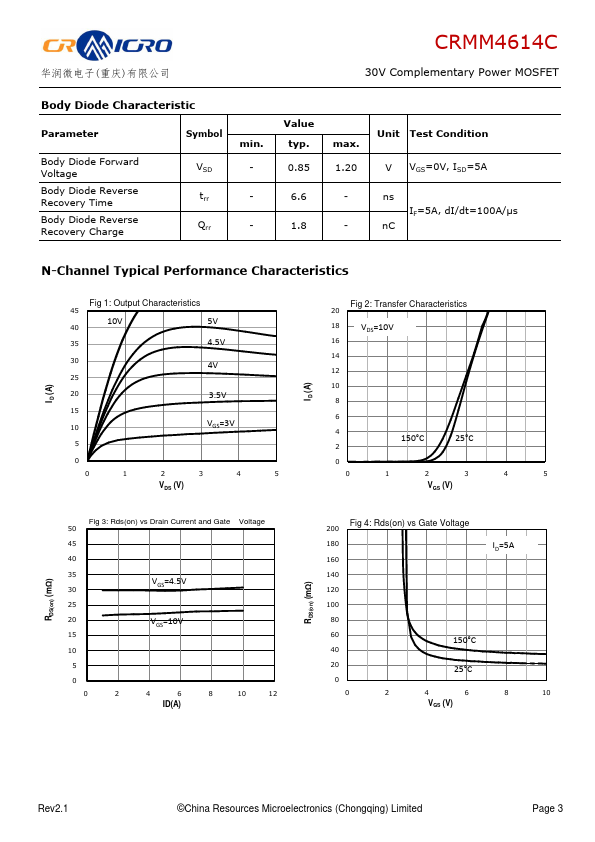

CRMM4614C Datasheet Preview — Preview of CRMM4614C PDF

Datasheet Specifications

Part number: CRMM4614C
Manufacturer: CR Micro
File Size: 1.12 MB
Datasheet: CRMM4614C-CRMicro.pdf
Description: 30V Complementary Power MOSFET

Features

* Uses CRM(CQ) advanced Trench technology
* Extremely low on-resistance RDS(on)
* Excellent QgxRDS(on) product(FOM)

Applications

* Motor drive CRMM4614C 30V Complementary Power MOSFET Product Summary Symbol N-Ch VDS RDS(on) typ. 30V 22mΩ ID 7A P-Ch -30V 22mΩ -7A 100% DVDS Tested 100% Avalanche Tested Package Marking and Ordering Information Part # Marking Package CRMM4614C CRMM4614C SOP-8 Absolute Ma
