CRMM4901C 40V Complementary Power MOSFET

CR Micro

Description

() .

📥 Download Datasheet

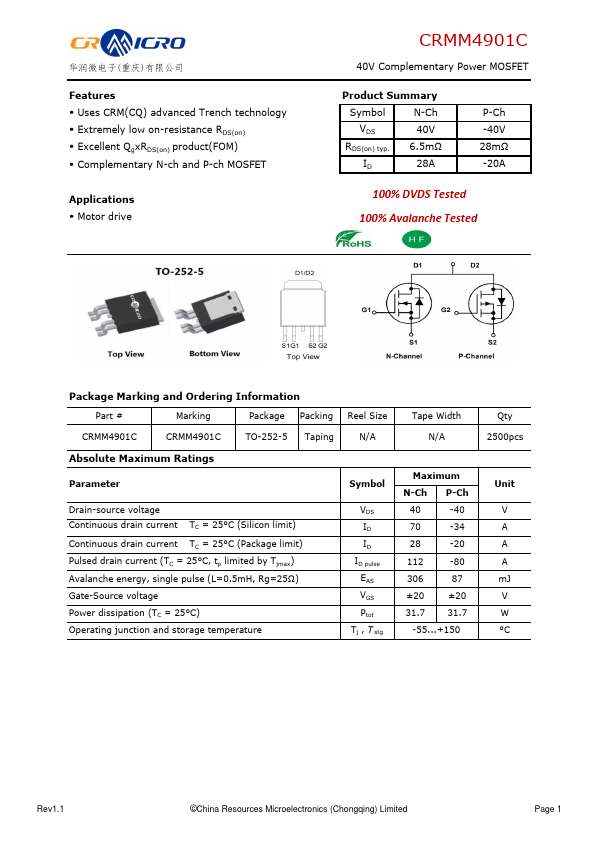

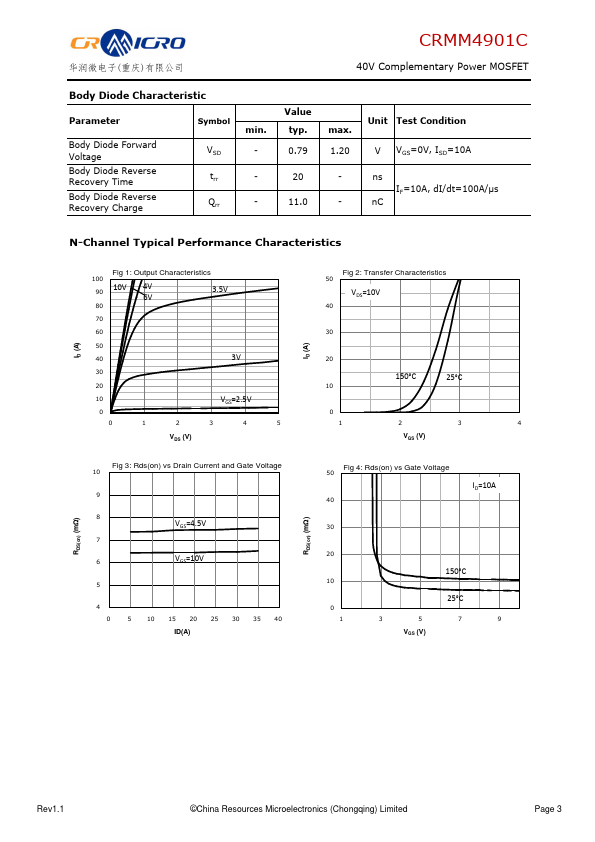

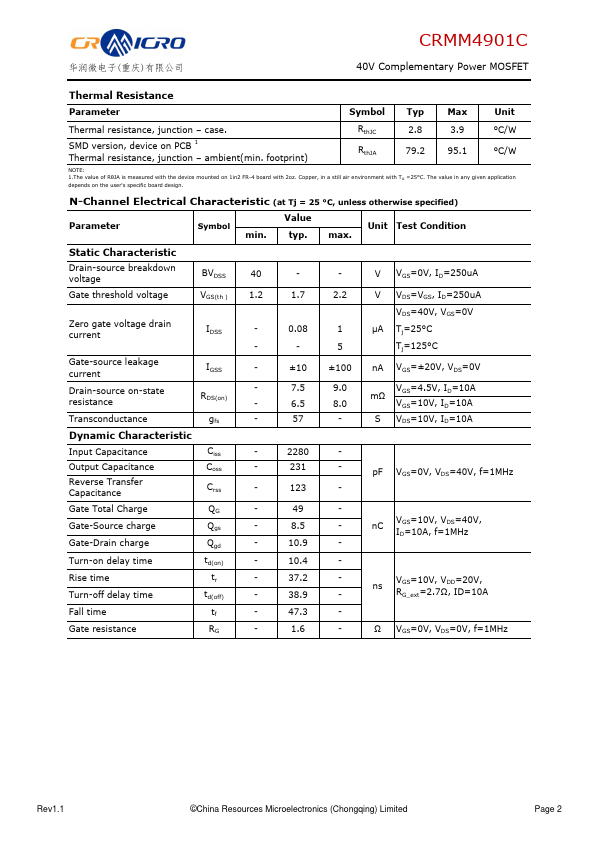

CRMM4901C Datasheet Preview — Preview of CRMM4901C PDF

Datasheet Specifications

Part number: CRMM4901C
Manufacturer: CR Micro
File Size: 1.18 MB
Datasheet: CRMM4901C-CRMicro.pdf
Description: 40V Complementary Power MOSFET

Features

* Uses CRM(CQ) advanced Trench technology
* Extremely low on-resistance RDS(on)
* Excellent QgxRDS(on) product(FOM)

Applications

* Motor drive CRMM4901C 40V Complementary Power MOSFET Product Summary Symbol N-Ch VDS RDS(on) typ. ID 40V 6.5mΩ 28A P-Ch -40V 28mΩ -20A 100% DVDS Tested 100% Avalanche Tested Package Marking and Ordering Information Part # Marking Package Packing Reel Size Tape Width CRMM4901
