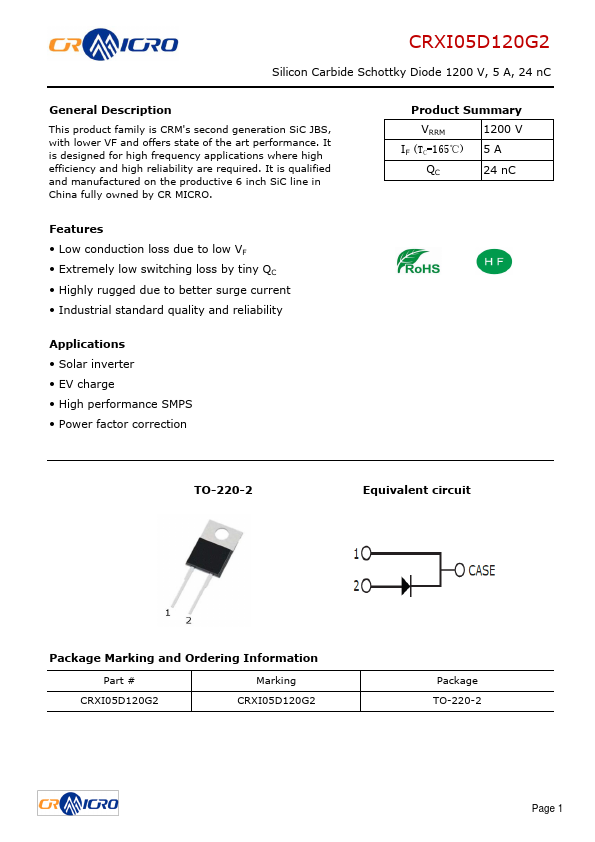

CRXI05D120G2
Description
This product family is CRM's second generation Si C JBS, with lower VF and offers state of the art performance. It is designed for high frequency applications where high efficiency and high reliability are required. It is qualified and manufactured on the productive 6 inch Si C line in China fully owned by CR MICRO.
Features
- Low conduction loss due to low VF
- Extremely low switching loss by tiny QC
- Highly rugged due to better surge current
- Industrial standard quality and reliability
Applications
- Solar inverter
- EV charge
- High performance SMPS
- Power factor correction
Product Summary
VRRM IF (TC=165℃)
1200 V 5A
24 n C
TO-220-2
Equivalent circuit
Package Marking and Ordering Information
Part #
Marking
Package TO-220-2
Page 1
Silicon Carbide Schottky Diode 1200 V, 5 A, 24 n C

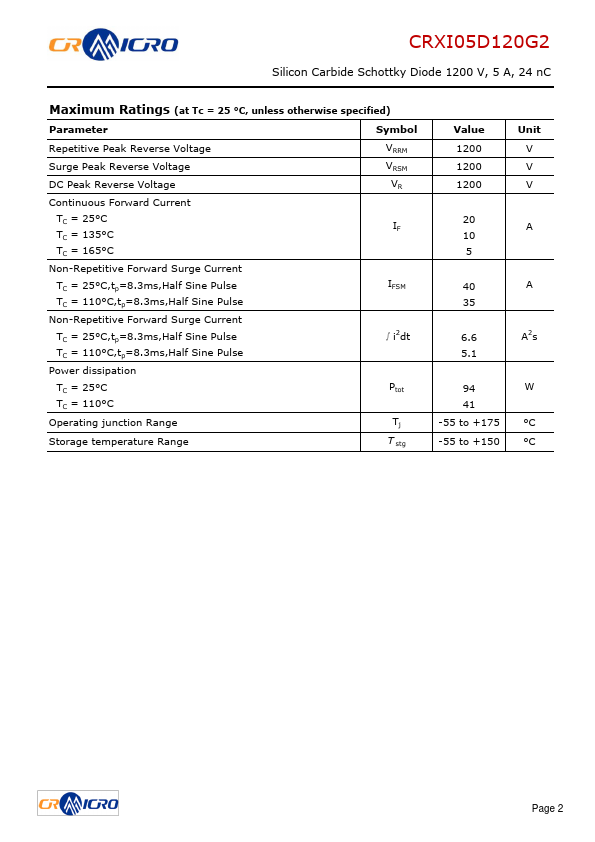

Maximum Ratings (at Tc = 25 °C, unless otherwise specified)
Parameter
Symbol
Repetitive Peak Reverse Voltage Surge Peak Reverse...
