CS65N25ANR Datasheet, Power Mosfet, CR Micro

Silicon n-channel power mosfet

📥 Download PDF (570.93 KB)

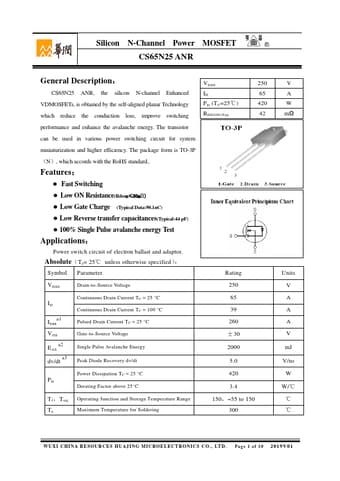

CS65N25ANR Datasheet Preview Page 1 — Preview of CS65N25ANR Datasheet

PDF File Details

Part number:

CS65N25ANR

Manufacturer:

CR Micro

File Size:

570.93 KB

Download:

📄 Download the CS65N25ANR Datasheet PDF

Description:

Silicon n-channel power mosfet.

VDSS

250

CS65N25 ANR, the silicon N-channel Enhanced ID

65

VDMOSFETs, is obtained by the self-aligned planar Technology

PD (TC=25℃)

420

which reduce the conduction loss, improve switching

RD.

✔ CS65N25ANR Features

Fast Switching
Low ON Resistance(Rdson≤50mΩ)
Low Gate Charge (Typical Data:90.1nC)
Low Reverse transfer capacitances(Typical:44 pF)
100% Single Pulse avalanch

✔ CS65N25ANR Application

Power switch circuit of electron ballast and adaptor. Absolute（TJ= 25℃ unless otherwise specified）： Symbol
