8.0SMDJ12A - Power TVS

Product Overview

📥 Download Datasheet

8.0SMDJ12A Power TVS by CREATEK - Datasheet Preview — Datasheet preview – 8.0SMDJ12A

Datasheet Details

Part number	8.0SMDJ12A
Manufacturer	CREATEK
File Size	0.98 MB
Description	Power TVS
Datasheet	8.0SMDJ12A Datasheet

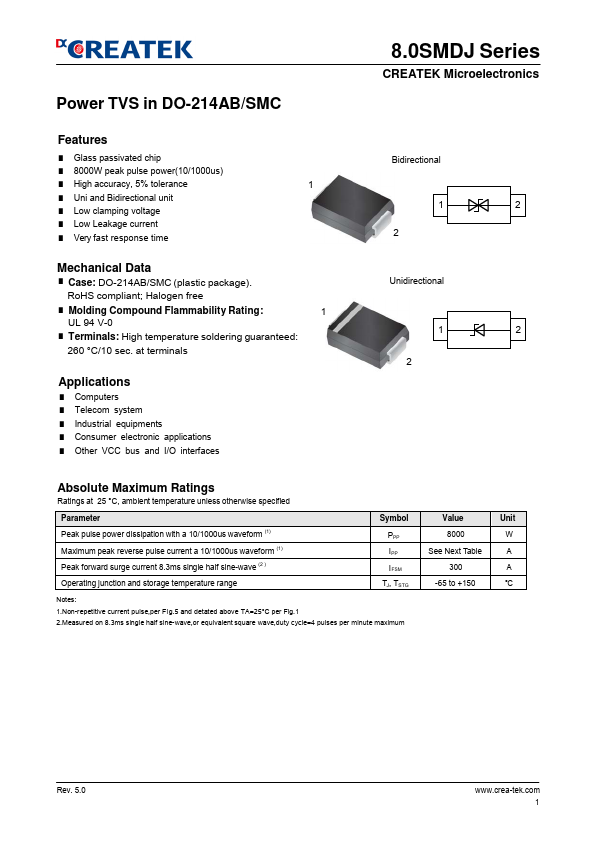

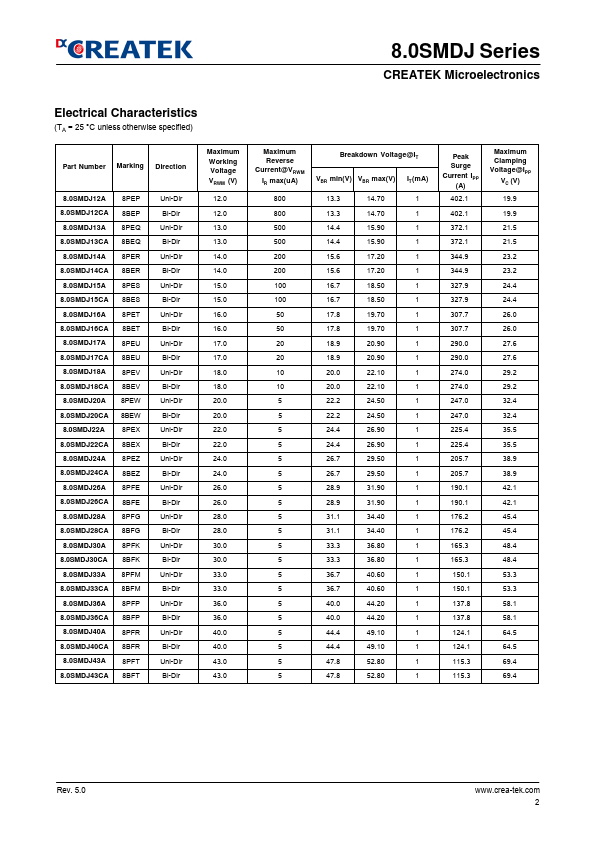

Additional preview pages of the 8.0SMDJ12A datasheet.

Product details

Features

Glass passivated chip.
8000W peak pulse power(10/1000us).
High accuracy, 5% tolerance.
Uni and Bidirectional unit.
Low clamping voltage.
Low Leakage current.
Very fast response time Bidirectional 1 1 2 2 Mechanical Data.
Case: DO-214AB/SMC (plastic package). Unidirectional RoHS compliant; Halogen free.
Molding Compound Flammability Rating: 1 UL 94 V-0.
Terminals: High temperature soldering guaranteed: 1 2 260 °C/10 sec. at termin.
