GPK100HF120D1 IGBT

📥 Download Datasheet  Datasheet Preview Page 1

Description

IGBT Module .

📥 Download Datasheet

Preview of GPK100HF120D1 PDF

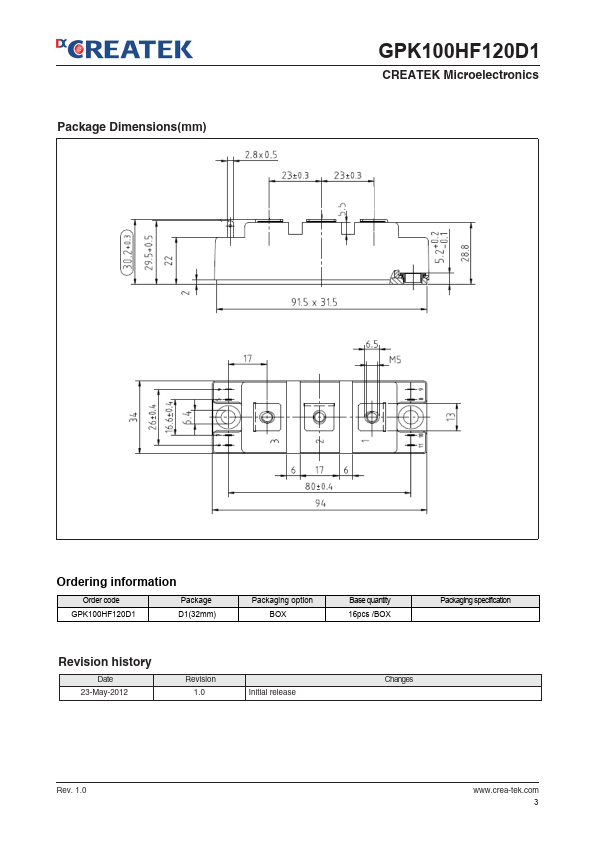

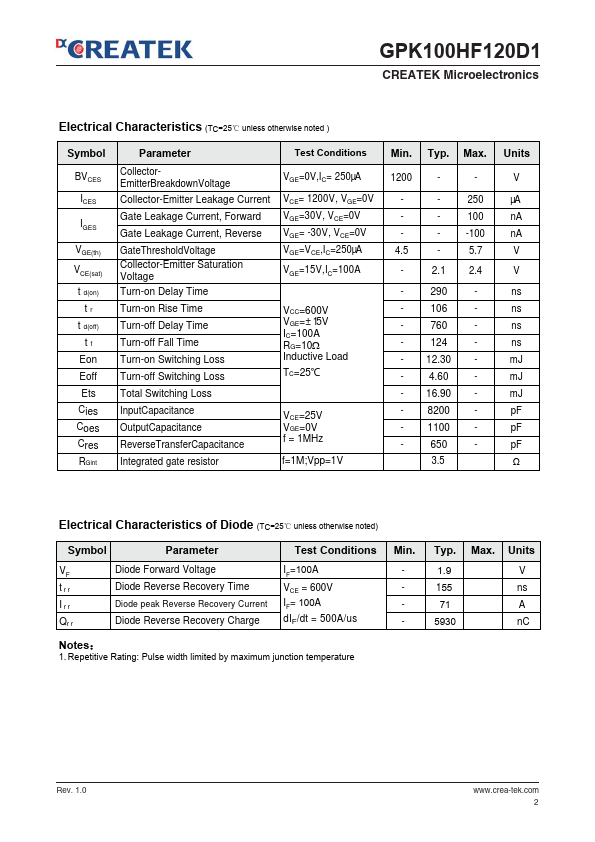

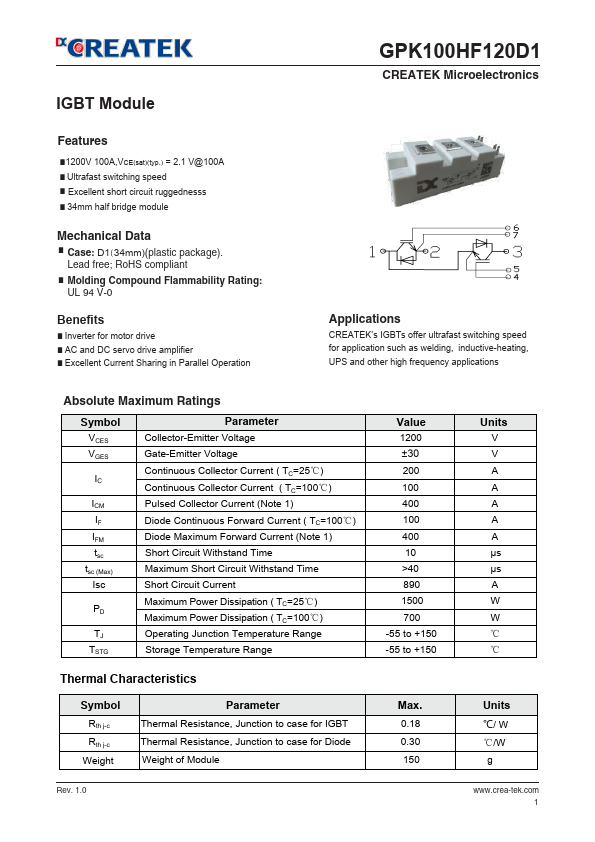

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
GPK100HF120D1
Manufacturer
CREATEK
File Size
1.03 MB
Datasheet
GPK100HF120D1-CREATEK.pdf
Description
IGBT

Features

* 1200V 100A,VCE(sat)(typ. ) = 2.1 V@100A Ultrafast switching speed Excellent short circuit ruggednesss 34mm half bridge module Mechanical Data Case: D1(34mm)(plastic package). Lead free; RoHS compliant Molding Compound Flammability Rating: UL 94 V-0 Benefits Inverter for motor drive AC and DC s

Applications

* CREATEK’s IGBTs offer ultrafast switching speed for application such as welding, inductive-heating, UPS and other high frequency applications Absolute Maximum Ratings Symbol VCES VGES IC ICM IF IFM tsc tsc (Max) Isc PD TJ TSTG Parameter Collector-Emitter Voltage Gate-Emitter Voltage Continuous Co
