4N32 - Photodarlington Optocoupler

This page provides the datasheet information for the 4N32, a member of the 4N30 Photodarlington Optocoupler family.

Datasheet Summary

Description

The 4N29, 4N30, 4N31, 4N32, and 4N33 series consist of a photodarlington transistor optically coupled to an Infrared-emitting diode in a 6-lead DIP DMC-Isolator® package with different lead forming options.

Switch mode power supplies Computer peripheral interface

Features

  • High isolation 5000 VRMS.
  • Patented coplanar structure DMC-Isolator®.
  • DC input with Transistor output.
  • Operating Temperature range - 55 °C to 100 °C.
  • External Creepage ≥ 7.4mm.
  • Distance Through Isolation ≥ 0.4mm.
  • Clearance Distance ≥ 7.5mm (S/SL Type).
  • Clearance Distance ≥ 8.0mm (M/SLM Type).
  • RoHS and REACH Compliance.
  • Halogen Free Compliance (Optional).
  • MSL class 1.
  • Regulatory Approvals ✓.

📥 Download Datasheet

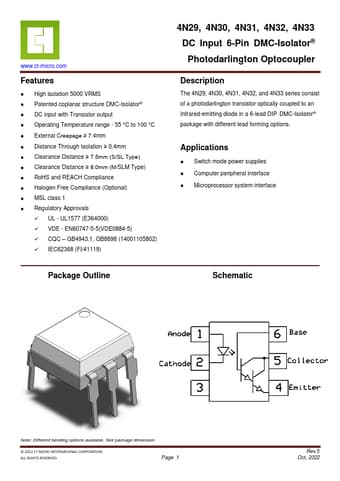

Datasheet preview – 4N32

Datasheet Details

Part number 4N32
Manufacturer CT Micro
File Size 1.12 MB
Description Photodarlington Optocoupler
Datasheet download datasheet 4N32 Datasheet
Additional preview pages of the 4N32 datasheet.

📁 Similar Datasheet

  • 4N32 - Optocoupler (Vishay Telefunken)
  • 4N32 - PHOTODARLINGTON OPTOCOUPLER (Siemens Semiconductor Group)
  • 4N32 - 6-Pin DIP Optoisolators (Motorola Inc)
  • 4N32 - PHOTO TRANSISTOR (Toshiba Semiconductor)
  • 4N32 - GENERAL PURPOSE 6-PIN PHOTODARLINGTON OPTOCOUPLERS (QT Optoelectronics)
  • 4N32 - (4N30 - 4N3) General Purpose 6-Pin Photodarlington Optocoupler (Fairchild Semiconductor)
  • 4N32-2 - LOW INPUT CURRENT PHOTODARLINGTON OPTICALLY COUPLED ISOLATORS (ISOCOM)
  • 4N32-3 - LOW INPUT CURRENT PHOTODARLINGTON OPTICALLY COUPLED ISOLATORS (ISOCOM)
  • 4N32-3 - LOW INPUT CURRENT PHOTODARLINGTON OPTICALLY COUPLED ISOLATORS (ISOCOM)
  • 4N32A - PHOTO TRANSISTOR (Toshiba Semiconductor)
Other Datasheets by CT Micro
  • 4N30 - Photodarlington Optocoupler
  • 4N31 - Photodarlington Optocoupler
  • 4N33 - Photodarlington Optocoupler
  • 4N35 - Phototransistor Optocoupler
  • 4N36 - Phototransistor Optocoupler
  • 4N37 - Phototransistor Optocoupler
  • 4N38 - Phototransistor Optocoupler

Full PDF Text Transcription

Click to expand full text
www.ct-micro.com Features • High isolation 5000 VRMS • Patented coplanar structure DMC-Isolator® • DC input with Transistor output • Operating Temperature range - 55 °C to 100 °C • External Creepage ≥ 7.4mm • Distance Through Isolation ≥ 0.4mm • Clearance Distance ≥ 7.5mm (S/SL Type) • Clearance Distance ≥ 8.0mm (M/SLM Type) • RoHS and REACH Compliance • Halogen Free Compliance (Optional) • MSL class 1 • Regulatory Approvals ✓ UL - UL1577 (E364000) ✓ VDE - EN60747-5-5(VDE0884-5) ✓ CQC – GB4943.
