GRP161504-DTC2

Dual Wavelength SMD Type Emitter

GRP161504-DTC2 Features

* Top view 1615 package

* Viewing Angle = 650

* Compatible with infrared and vapor phase reflow solder process

* High reliability

* Dual dominant wavelength (G=532nm , R=621nm)

* RoHS compliance Applications

* Optical indicator.

* Switch and Symbol Display. Descript

GRP161504-DTC2 General Description

The GRP161504-DTC2 is a double LED housed in a miniature SMD package. The device has a dominant wavelength of 532nm and 621nm LED. Package Outline R- G- R+ G+ Schematic CT Micro Proprietary & Confidential Page 1 Rev 2 Jan, 2021 GRP161504-DTC2 Dual Wavelength SMD Type Emitter Absolute Maximum.

GRP161504-DTC2 Datasheet (1.04 MB)

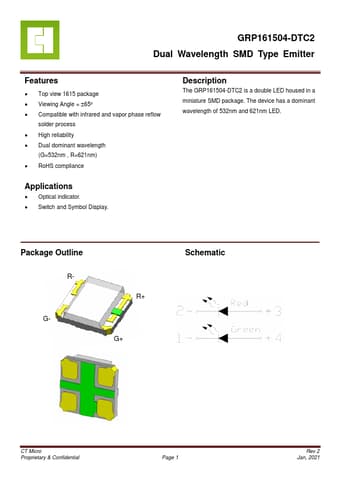

Preview of GRP161504-DTC2 PDF

Datasheet Details

Part number:

GRP161504-DTC2

Manufacturer:

CT Micro

File Size:

1.04 MB

Description:

Dual wavelength smd type emitter.
