S5ABF - Surface Mount General Purpose Silicon Rectifiers

📥 Download Datasheet

Preview of S5ABF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number S5ABF
Manufacturer CTK
File Size 242.53 KB
Description Surface Mount General Purpose Silicon Rectifiers
Datasheet download datasheet S5ABF-CTK.pdf

S5ABF Product details

Description

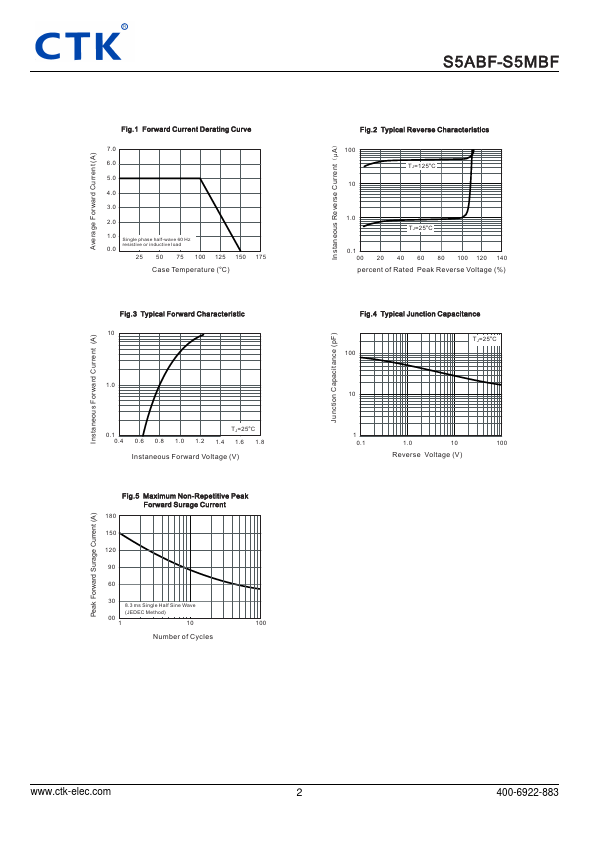

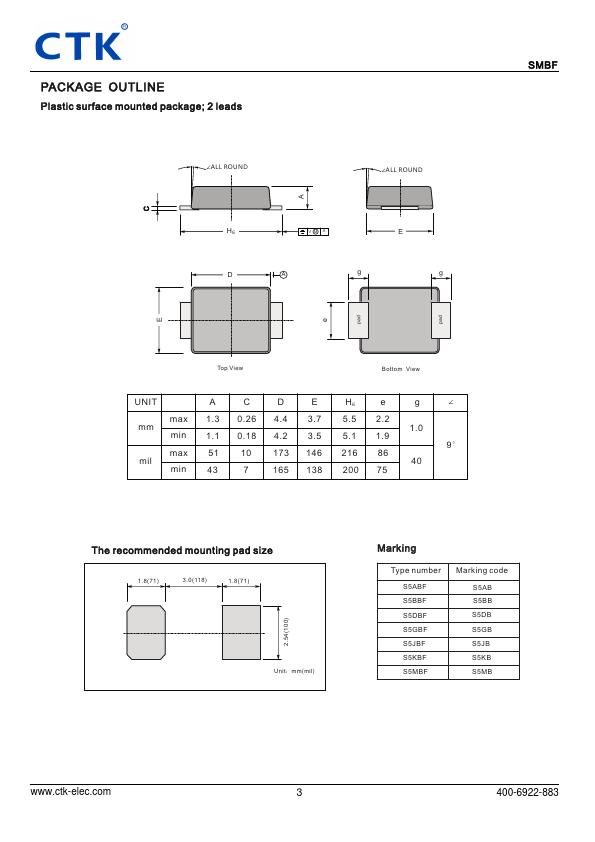

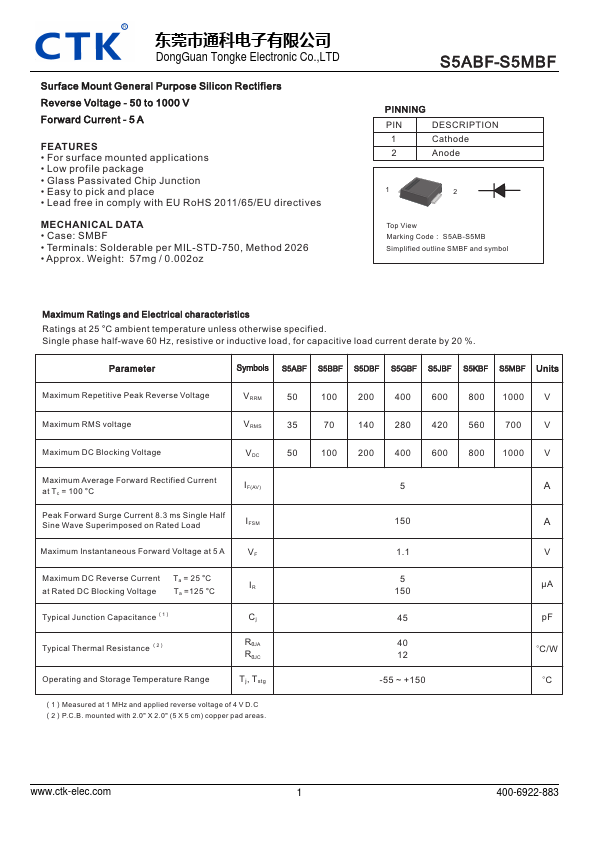

1 Cathode 2 Anode 1 2 Top View Marking Code: S5AB-S5MB Simplified outline SMBF and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.Parameter Symbols S5ABF S5BBF S5DBF S5GBF S5JBF S5KBF S5MBF Units Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140 28
