MP120 - Quartz Crystal

Description

The MP crystal series offers excellent long-term stability and reliability in a proven resistanceweld metal package.

The excellent shock performance makes it suitable for microprocessor, telecommunication, consumer electronic and networking applications.

Features

  • www. datasheet4u. com.
  • Standard HC-49/U Package, HC-49/U SM Package Option Available.
  • Stable Frequency Over Temperature and Drive Level.
  • Fundamental and 3rd Overtone Crystals.
  • Frequency Range 1.8.
  • 48 MHz.
  • Frequency Tolerance, ±45 ppm Standard.
  • Frequency Stability, ±50 ppm Standard.
  • Operating Temperature,.
  • 20°C to +70°C.
  • Tape & Reel Packaging Available.
  • RoHS/Green Compliant.

📥 Download Datasheet

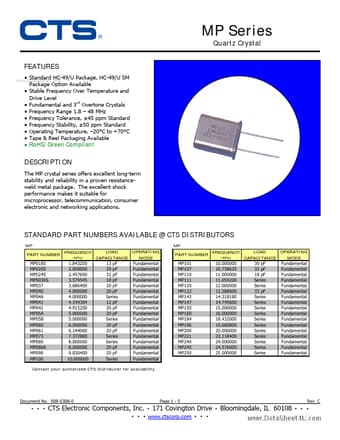

Datasheet preview – MP120

Datasheet Details

Part number MP120
Manufacturer CTS Corporation
File Size 166.83 KB
Description Quartz Crystal
Datasheet download datasheet MP120 Datasheet
Additional preview pages of the MP120 datasheet.

📁 Similar Datasheet

  • MP120 - Low Cost Quartz Crystal (CTS)
  • MP120-E - Low Cost Quartz Crystal (CTS)
  • MP1200 - Tunnel Diodes (M-Pulse)
  • MP1201 - Tunnel Diodes (M-Pulse)
  • MP1202 - Tunnel Diodes (M-Pulse)
  • MP1203 - Tunnel Diodes (M-Pulse)
  • MP1204 - Tunnel Diodes (M-Pulse)
  • MP1205 - Tunnel Diodes (M-Pulse)
  • MP120A - Low Cost Quartz Crystal (CTS)
  • MP120A-E - Low Cost Quartz Crystal (CTS)
Other Datasheets by CTS Corporation

Full PDF Text Transcription

Click to expand full text
MP Series Quartz Crystal FEATURES www.datasheet4u.com • Standard HC-49/U Package, HC-49/U SM Package Option Available • Stable Frequency Over Temperature and Drive Level • Fundamental and 3rd Overtone Crystals • Frequency Range 1.8 – 48 MHz • Frequency Tolerance, ±45 ppm Standard • Frequency Stability, ±50 ppm Standard • Operating Temperature, –20°C to +70°C • Tape & Reel Packaging Available • RoHS/Green Compliant DESCRIPTION The MP crystal series offers excellent long-term stability and reliability in a proven resistanceweld metal package. The excellent shock performance makes it suitable for microprocessor, telecommunication, consumer electronic and networking applications.
