VFM1004A - UMTS PICOCELL FRONT END MODULE

Name: VFM1004A
SKU: VFM1004A-617850

CTS Corporation

The VFM1004A by CTS Corporation is a UMTS PICOCELL FRONT END MODULE. Below is the official datasheet preview.

Datasheet Details

Part number	VFM1004A
Manufacturer	CTS Corporation
File Size	166.60 KB
Description	UMTS PICOCELL FRONT END MODULE
Datasheet	VFM1004A_CTSCorporation.pdf

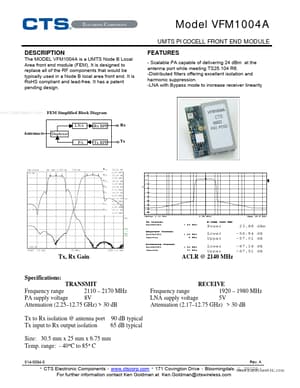

Additional preview pages of the VFM1004A datasheet.

The MODEL VFM1004A is a UMTS Node B Local Area front end module (FEM).

- Scalable PA capable of delivering 24 dBm at the antenna port while meeting TS25.104 R6. -Distributed filters offering excellent isolation and harmonic suppression. -LNA with Bypass mode to increase receiver linearity www. DataSheet4U. com FEM Simplified Block Diagram LNA Rx BPF Rx Antenna Duplexer PA Tx BPF Tx Tx, Rx Gain ACLR @ 2140 MHz Specifications:.
