AMT103 - MODULAR ENCODER

Product Overview

CUI

📥 Download Datasheet

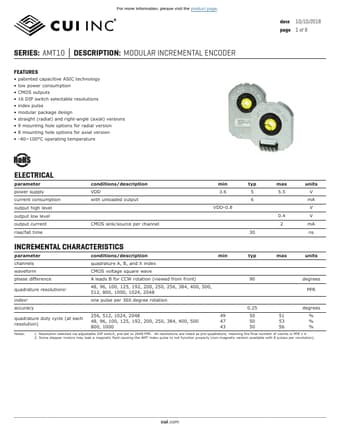

AMT103 MODULAR ENCODER by CUI - Datasheet Preview — Datasheet preview – AMT103

Datasheet Details

Part number	AMT103
Manufacturer	CUI
File Size	833.05 KB
Description	MODULAR ENCODER
Datasheet	AMT103 Datasheet
Note	This datasheet PDF includes multiple part numbers: AMT103, AMT10. Please refer to the document for exact specifications by model.
Additional preview pages of the AMT103 datasheet.

Product details

Description

MODULAR INCREMENTAL ENCODER

Features

patented capacitive ASIC technology.
low power consumption.
CMOS outputs.
16 DIP switch selectable resolutions.
index pulse.
modular package design.
straight (radial) and right-angle (axial) versions.
9 mounting hole options for radial version.
8 mounting hole options for axial version.
-40~100°C operating temperature date 12/18/2017 page 1 of 8.
