CP20351 - Peltier Module

Product Overview

CUI

📥 Download Datasheet

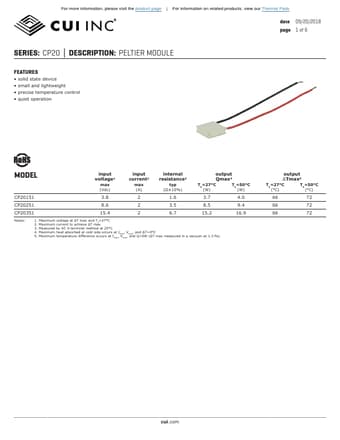

CP20351 Peltier Module by CUI - Datasheet Preview — Datasheet preview – CP20351

Datasheet Details

Part number	CP20351
Manufacturer	CUI
File Size	305.27 KB
Description	Peltier Module
Datasheet	CP20351 Datasheet
Note	This datasheet PDF includes multiple part numbers: CP20351, CP20151. Please refer to the document for exact specifications by model.
Additional preview pages of the CP20351 datasheet.

Product details

Description

PELTIER MODULE

Features

solid state device.
small and lightweight.
precise temperature control.
quiet operation MODEL input voltage1 max (Vdc) input current2 max (A) internal resistance3 typ (Ω±10%) output Qmax4 Th=27°C (W) Th=50°C (W) CP20151 3.8 2 1.6 3.7 4.0 CP20251 8.6 2 3.5 8.5 9.4 CP20351 15.4 2 6.7 15.2 16.9 Notes: 1. Maximum voltage at ΔT max and Th=27°C 2. Maximum current to achieve ΔT max 3. Measured by AC 4-terminal me.
