CX-0905C - Magnetic buzzer

CUI

📥 Download Datasheet

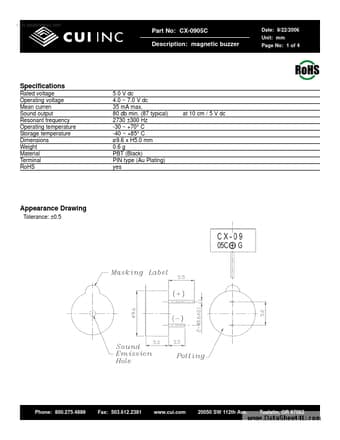

CX-0905C Datasheet Preview — Preview of CX-0905C PDF

Datasheet Details

Part number: CX-0905C
Manufacturer: CUI
File Size: 329.84 KB
Datasheet: CX-0905C_CUI.pdf
Description: Magnetic buzzer

CX-0905C Product details

Description

magnetic buzzer Date: 9/22/2006 Unit: mm Page No: 1 of 4 Specifications Rated voltage Operating voltage Mean curren Sound output Resonant frequency Operating temperature Storage temperature Dimensions Weight Material Terminal RoHS 5.0 V dc 4.0 ~ 7.0 V dc 35 mA max.80 db min.(87 typical) 2730 ±300 Hz -30 ~ +70° C -40 ~ +85° C ø9.6 x H5.0 mm 0.6 g PBT (Black) PIN type (Au Plating) yes at 10 cm / 5 V dc Appearance Drawing Tolerance: ±0.5 Phone: 800.275.4899 Fax: 503.612.2381 www.cui.com
