NEMA11-AMT112S Datasheet PDF (STEPPER SERVO MOTOR)

NEMA11-AMT112S - STEPPER SERVO MOTOR

Description

STEPPER SERVO MOTOR

Features

CUI AMT112S encoder + LIN Engineering stepper motor.
stepper motor with encoder for closed-loop mode when paired with a controller.
small, compact NEMA 11 frame size.
up to 16.6 oz-in (0.12 N-m) holding torque.
patented capacitive encoder ASIC technology.
incremental resolutions up to 4096 PPR.
resolutions programmable with AMT Viewpoint™ PC software.
digitally set zero position date 06/26/2018 page 1 of 6 IN.

Datasheet Details

Part number	NEMA11-AMT112S
Manufacturer	CUI
File Size	705.31 KB
Description	STEPPER SERVO MOTOR
Datasheet	NEMA11-AMT112S Datasheet

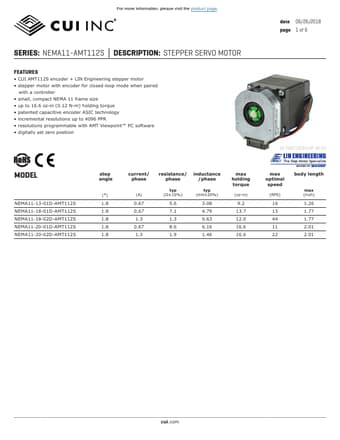

Additional preview pages of the NEMA11-AMT112S datasheet.

📁 Similar Datasheet

NEMA17 - 2-phase stepper motor (Schneider)

NEMA17 - Integrated Closed Loop Stepper Motor (Servotronix)

NEMA17 - STEPPER MOTOR (Einstronic)

NEMA17 - Stepper Motor (PBC Linear)

NEMA23 - stepper motor (WOTIOM)

NEMA23 - 2-phase stepper motor (Schneider)

NEMA23 - Integrated Closed Loop Stepper Motor (Servotronix)

NEMA34 - Integrated Closed Loop Stepper Motor (Servotronix)

NEM0899F01-30 - N-Channel MOSFET (NEC)

Full PDF Text Transcription

Click to expand full text

For more information, please visit the product page. SERIES: NEMA11-AMT112S │ DESCRIPTION: STEPPER SERVO MOTOR FEATURES • CUI AMT112S encoder + LIN Engineering stepper motor • stepper motor with encoder for closed-loop mode when paired with a controller • small, compact NEMA 11 frame size • up to 16.6 oz-in (0.12 N-m) holding torque • patented capacitive encoder ASIC technology • incremental resolutions up to 4096 PPR • resolutions programmable with AMT Viewpoint™ PC software • digitally set zero position date 06/26/2018 page 1 of 6 IN PARTNERSHIP WITH MODEL NEMA11-13-01D-AMT112S NEMA11-18-01D-AMT112S NEMA11-18-02D-AMT112S NEMA11-20-01D-AMT112S NEMA11-20-02D-AMT112S step angle (°) 1.8 1.8 1.8 1.8 1.8 current/ phase (A) 0.67 0.67 1.3 0.67 1.
