NEMA17-13-04PD-AMT112S
NEMA17-13-04PD-AMT112S is STEPPER SERVO MOTOR manufactured by CUI.
- Part of the NEMA17-AMT112S comparator family.
- Part of the NEMA17-AMT112S comparator family.
Additional Resources: Product Page
SERIES: NEMA17-AMT112S │ DESCRIPTION: STEPPER SERVO MOTOR
Features
- CUI AMT112S encoder + LIN Engineering stepper motor
- stepper motor with encoder for closed-loop mode when paired with a controller
- small, pact NEMA 17 frame size
- up to 110 oz-in (0.77 N-m) holding torque
- patented capacitive encoder ASIC technology
- incremental resolutions up to 4096 PPR
- resolutions programmable with AMT Viewpoint™ PC software

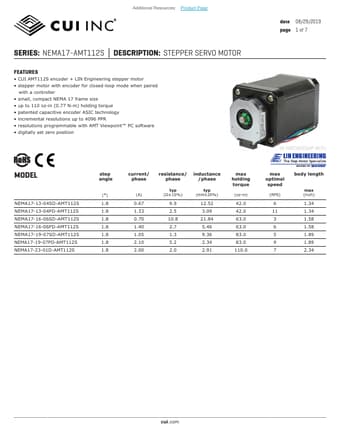

- digitally set zero position date 08/29/2019 page 1 of 7
IN PARTNERSHIP WITH
MODEL
NEMA17-13-04SD-AMT112S NEMA17-13-04PD-AMT112S NEMA17-16-06SD-AMT112S NEMA17-16-06PD-AMT112S NEMA17-19-07SD-AMT112S NEMA17-19-07PD-AMT112S NEMA17-23-01D-AMT112S step angle
(°) 1.8 1.8 1.8 1.8 1.8 1.8 1.8 current/ phase
(A) 0.67 1.33 0.70 1.40 1.05 2.10 2.00 resistance/ inductance phase
/phase typ (Ω±10%)
9.9 2.5 10.8 2.7 1.3 5.2 2.0 typ (m H±20%)
12.52 3.09 21.84 5.46 9.36 2.34 2.91 max holding torque
(oz-in)
42.0 42.0 63.0 63.0 83.0 83.0 110.0 max optimal speed
(RPS)
6 11 3 6 5 9 7 body length max (inch) 1.34 1.34 1.58 1.58 1.89 1.89 2.34 cui.
Additional Resources: Product Page CUI Inc │ SERIES: NEMA17-AMT112S │ DESCRIPTION: STEPPER SERVO MOTOR date 08/29/2019 │ page 2 of 7
AMT112S ENCODER
ELECTRICAL parameter power supply start up time current consumption output high level output low level output current (per channel) rise/fall time conditions/description VDD with unloaded output min 4.5
VDD-0.1
INCREMENTAL CHARACTERISTICS parameter conditions/description min channels
CMOS Voltage: A, B, Z waveform
CMOS voltage square wave phase...
