NEMA17-16-06SD-AMT112S - STEPPER SERVO MOTOR

Download the NEMA17-16-06SD-AMT112S datasheet PDF. This datasheet also covers the NEMA17-AMT112S variant, as both devices belong to the same stepper servo motor family and are provided as variant models within a single manufacturer datasheet.

General Description

STEPPER SERVO MOTOR

Key Features

  • CUI AMT112S encoder + LIN Engineering stepper motor.
  • stepper motor with encoder for closed-loop mode when paired with a controller.
  • small, compact NEMA 17 frame size.
  • up to 110 oz-in (0.77 N-m) holding torque.
  • patented capacitive encoder ASIC technology.
  • incremental resolutions up to 4096 PPR.
  • resolutions programmable with AMT Viewpoint™ PC software.
  • digitally set zero position date 08/29/2019 page 1 of 7 IN.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NEMA17-AMT112S-CUI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
NEMA17 2-phase stepper motor Schneider
NEMA17 Integrated Closed Loop Stepper Motor Servotronix
NEMA17 STEPPER MOTOR Einstronic
NEMA17 Stepper Motor PBC Linear
NEMA23 stepper motor WOTIOM

Other Datasheets by CUI

Part Number Description
NEMA17-16-06PD-AMT112S STEPPER SERVO MOTOR
NEMA17-13-04PD-AMT112S STEPPER SERVO MOTOR
NEMA17-13-04SD-AMT112S STEPPER SERVO MOTOR
NEMA17-19-07PD-AMT112S STEPPER SERVO MOTOR
NEMA17-19-07SD-AMT112S STEPPER SERVO MOTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

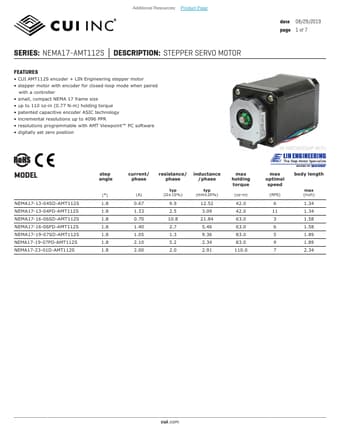

Additional Resources: Product Page SERIES: NEMA17-AMT112S │ DESCRIPTION: STEPPER SERVO MOTOR FEATURES • CUI AMT112S encoder + LIN Engineering stepper motor • stepper motor with encoder for closed-loop mode when paired with a controller • small, compact NEMA 17 frame size • up to 110 oz-in (0.77 N-m) holding torque • patented capacitive encoder ASIC technology • incremental resolutions up to 4096 PPR • resolutions programmable with AMT Viewpoint™ PC software • digitally set zero position date 08/29/2019 page 1 of 7 IN PARTNERSHIP WITH MODEL NEMA17-13-04SD-AMT112S NEMA17-13-04PD-AMT112S NEMA17-16-06SD-AMT112S NEMA17-16-06PD-AMT112S NEMA17-19-07SD-AMT112S NEMA17-19-07PD-AMT112S NEMA17-23-01D-AMT112S step angle (°) 1.8 1.8 1.8 1.8 1.8 1.8 1.8 current/ phase (A) 0.67 1.33 0.70 1.40 1.05 2.
