PDS1-S12-S12-M, PDS1-S3-S3-M, DC-DC CONVERTER

Additional Resources: Product Page | 3D Model | PCB Footprint SERIES: PDS1-M │ .
DC-DC CONVERTER FEATURES. 1 W isolated output. smaller package. single and dual unregulated outputs. 1,500 Vdc is.

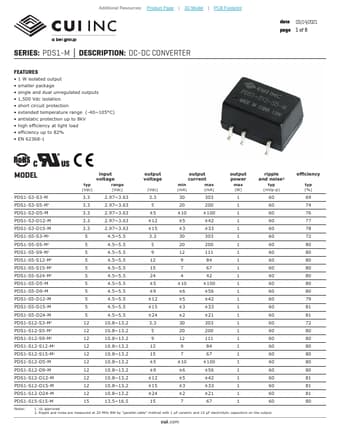

datasheet Preview Page 1 from Datasheet4u.com

PDS1-S3-S3-M-CUI.pdf

PDS1-S12-S12-M Datasheet Preview — This datasheet PDF includes multiple part numbers: PDS1-S12-S12-M, PDS1-S3-S3-M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PDS1-S12-S12-M, PDS1-S3-S3-M

Manufacturer:

CUI

File Size:

890.73 KB

Description:

DC-DC CONVERTER

Note:

This datasheet PDF includes multiple part numbers: PDS1-S12-S12-M, PDS1-S3-S3-M.
Please refer to the document for exact specifications by model.

Features

* 1 W isolated output
* smaller package
* single and dual unregulated outputs
* 1,500 Vdc isolation
* short circuit protection
* extended temperature range (-40~105°C)
* antistatic protection up to 8kV
* high efficiency at light load
