V7809-1000, V7803-1000 Datasheet - CUI

V7809-1000 - NON-ISOLATED SWITCHING REGULATOR

V7809-1000 Features

* 1 A current output

* extremely high efficiency up to 97%

* no heat sink required

* pin compatible to LM78XX linear regulators

* available in straight and right angle SIP packages

* low ripple and noise

* short circuit protection, thermal shut

V7803-1000-CUI.pdf

This datasheet PDF includes multiple part numbers: V7809-1000, V7803-1000. Please refer to the document for exact specifications by model.

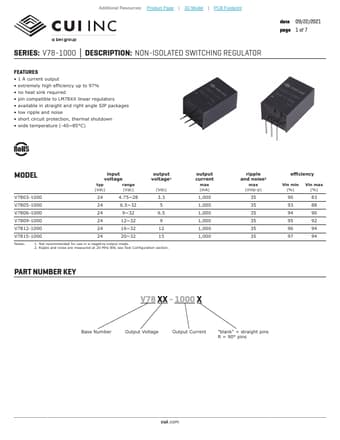

V7809-1000 Datasheet Preview Page 2 V7809-1000 Datasheet Preview Page 3

Datasheet Details

Part number:

V7809-1000, V7803-1000

Manufacturer:

CUI

File Size:

1.70 MB

Description:

Non-isolated switching regulator.

Note:

This datasheet PDF includes multiple part numbers: V7809-1000, V7803-1000.
Please refer to the document for exact specifications by model.
