VQB100R-T110-S12, VQB100R-T110-S5 Datasheet - CUI

VQB100R-T110-S12 DC-DC CONVERTER

VQB100R-T110-S12 Features

* up to 100 W isolated output industry standard quarter brick package 3:1 input range (66~160 V) single output from 5~24 V 1,500 V isolation over current, over temperature, over voltage, and short circuit protections

* remote on/off

VQB100R-T110-S5_CUI.pdf

This datasheet PDF includes multiple part numbers: VQB100R-T110-S12, VQB100R-T110-S5. Please refer to the document for exact specifications by model.

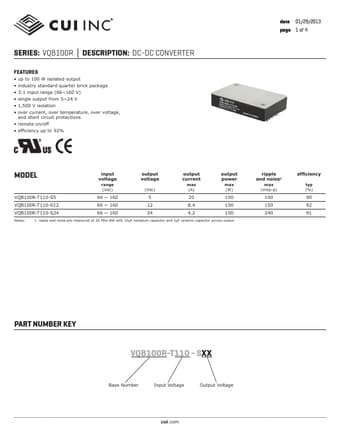

VQB100R-T110-S12 Datasheet Preview Page 2 VQB100R-T110-S12 Datasheet Preview Page 3

Datasheet Details

Part number:

VQB100R-T110-S12, VQB100R-T110-S5

Manufacturer:

CUI

File Size:

322.34 KB

Description:

Dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: VQB100R-T110-S12, VQB100R-T110-S5.
Please refer to the document for exact specifications by model.
