15SQ045, 15SQ030, SCHOTTKY BARRIER RECTIFIERS

RoHS compliant 15SQ030 thru 15SQ100 SCHOTTKY BARRIER RECTIFIERS REVERSE VOLTAGE - 30 to 100Volts FORWARD CURRENT - 15.0 Amperes .

15SQ030-CUMSUMI.pdf

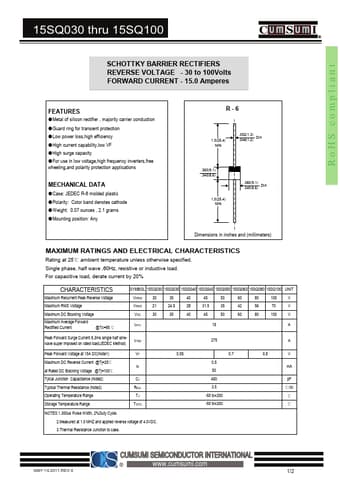

15SQ045 Datasheet Preview — This datasheet PDF includes multiple part numbers: 15SQ045, 15SQ030. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

15SQ045, 15SQ030

Manufacturer:

CUMSUMI

File Size:

176.70 KB

Description:

SCHOTTKY BARRIER RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: 15SQ045, 15SQ030.
Please refer to the document for exact specifications by model.

Features

* Metal of silicon rectifier , majority carrier conduction
* Guard ring for transient protection
* Low power loss,high efficiency
* High current capability,low VF
* High surge capacity
* For use in low voltage,high frequency inverters,free wheeling,and polarity protection applicati

Applications

* MECHANICAL DATA
* Case: JEDEC R-6 molded plastic
* Polarity: Color band denotes cathode
* Weight: 0.07 ounces , 2.1 grams
* Mounting position: Any R-6 1.0(25.4) MIN .052(1.3) .048(1.2) DIA .360(9.1) .340(8.6) 2100 .360(9.1) .340(8.6) DIA 1.0(25.4) MIN Dimensions in inches and (
