* For surface mounted applications in order to optimize board space.
* Low profile package
* Built-in strain relief
* Glass passivated junction
* Low inductance
* Typical IR less than 1.0µA above 12V
* Plastic package has Underwriters Laborator
1SMA5939B Datasheet (338.81 KB)
1SMA5939B
CUMSUMI
338.81 KB
Surface mount silicon zener diode.
.114(2.90) .098(2.50)
RoHS compliant

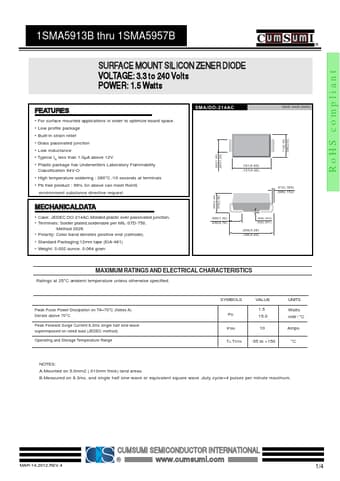

1SMA5913B thru 1SMA5957B
SURFACE MOUNT SILICON ZENER DIODE VOLTAGE: 3.3 to 240 Volts POWER: 1.5 Watts
®
FEATUR.
