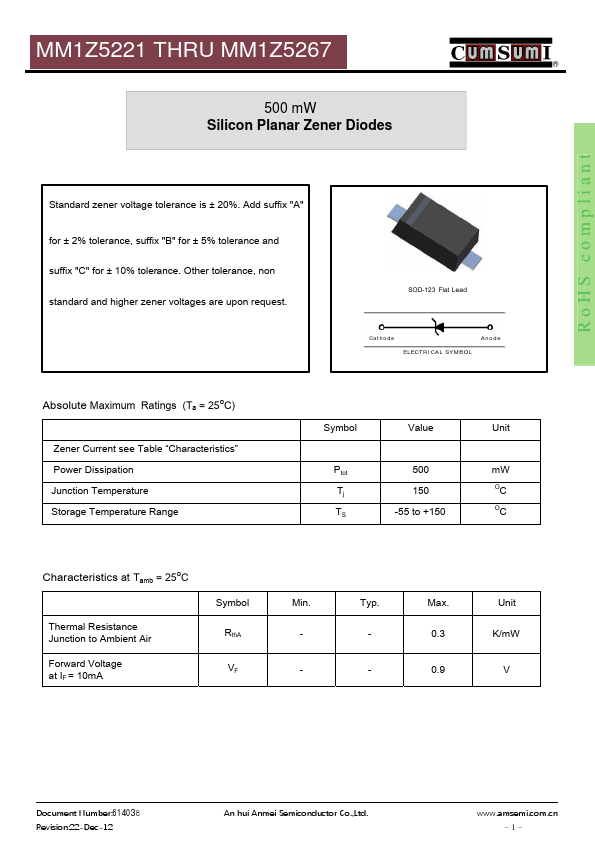

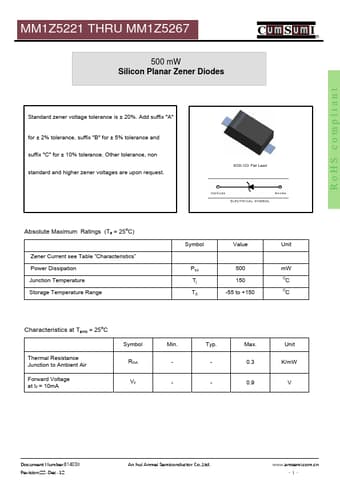

RoHS compliant MM1Z5221 THRU MM1Z5267 ® 500 mW Silicon Planar Zener Diodes Standard zener voltage tolerance is ± 20%.
Add suffix "A" for ± 2% tolerance, suffix "B" for ± 5% tolerance and suffix "C" for ± 10% tolerance.
Other tolerance, non standard and higher zener voltages are upon request.
SOD-123 Flat Lead Cathode Anode ELECTRICAL SYMBOL Absolute Maximum Ratings (Ta = 25oC) Zener Current see Table “Characteristics” Power Dissipation Junction Temperature Storage Temperature Range Symbo
