Datasheet Details
Part number:
MM1Z5231A, MM1Z5221A
Manufacturer:
CUMSUMI
File Size:
705.38 KB
Description:
500mw silicon planar zener diodes.
Note:
This datasheet PDF includes multiple part numbers: MM1Z5231A, MM1Z5221A.
Please refer to the document for exact specifications by model.

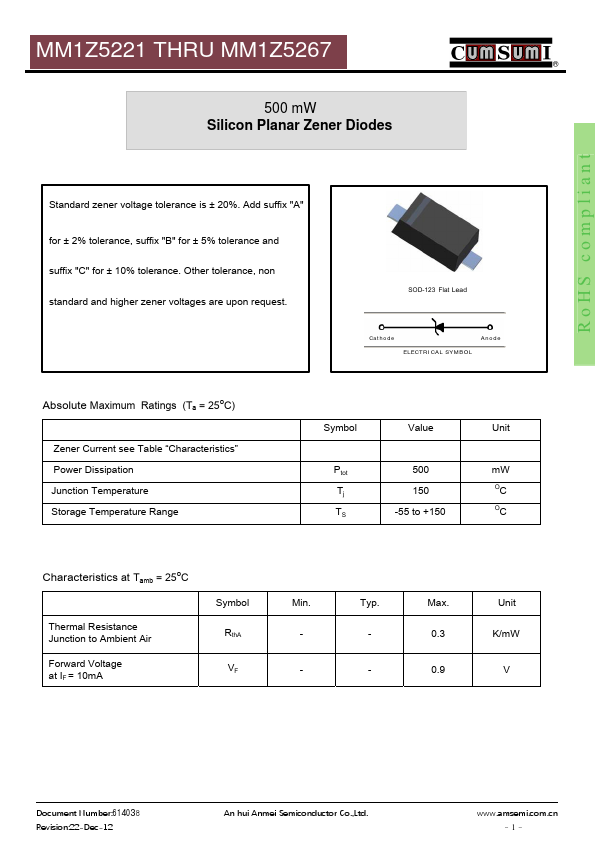

MM1Z5231A, MM1Z5221A, 500mW Silicon Planar Zener Diodes
RoHS compliant MM1Z5221 THRU MM1Z5267 ® 500 mW Silicon Planar Zener Diodes Standard zener voltage tolerance is ± 20%.
Add suffix "A" for ± 2% tolerance, suffix "B" for ± 5% tolerance and suffix "C" for ± 10% tolerance.
Other tolerance, non standard and higher zener voltages are upon request.
SOD-123 Flat Lead Cathode Anode ELECTRICAL SYMBOL Absolute Maximum Ratings (Ta = 25oC) Zener Current see Table “Characteristics” Power Dissipation Junction Temperature Storage Temperature Range Symbo
