MM1Z5242A - 500mW Silicon Planar Zener Diodes

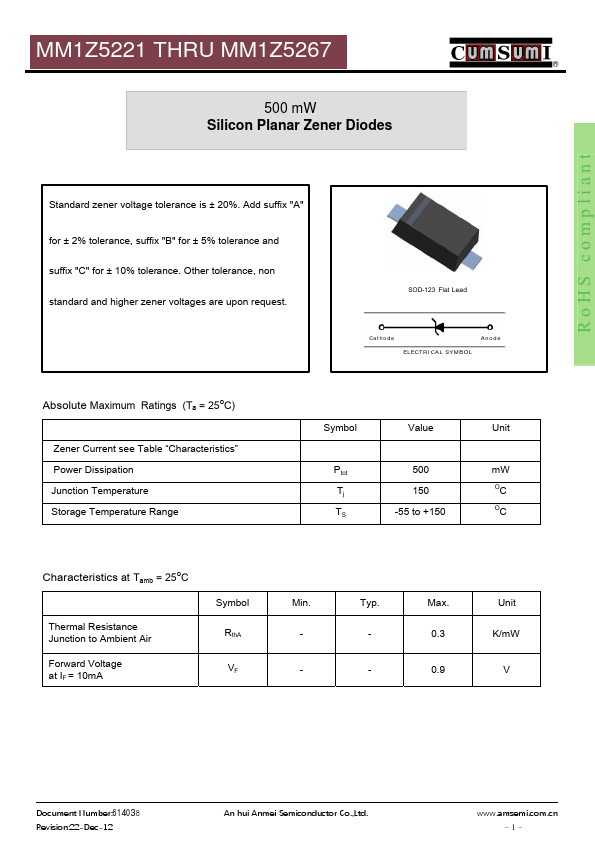

RoHS compliant MM1Z5221 THRU MM1Z5267 ® 500 mW Silicon Planar Zener Diodes Standard zener voltage tolerance is ± 20%. Add suffix "A" for ± 2% tolerance, suffix "B" for ± 5% tolerance and suffix "C" for ± 10% tolerance. Other tolerance, non standard and higher zener voltages are upon request. SOD-123 Flat Lead Cathode Anode ELECTRICAL SYMBOL Absolute Maximum Ratings (Ta = 25oC) Zener Current see Table “Characteristics” Power Dissipation Junction Temperature Storage Temperature Range Symbo.
