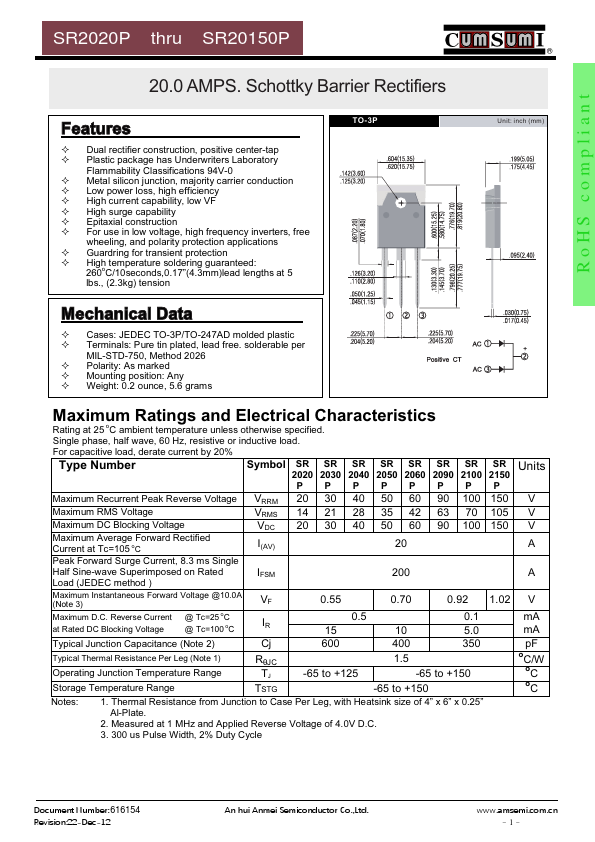

SR2030P, SR2020P 20A Schottky Barrier Rectifiers

CUMSUMI

Description

RoHS compliant SR2020P thru SR20150P ® 20.0 AMPS.Schottky Barrier Rectifiers .

📥 Download Datasheet

SR2030P Datasheet Preview — This datasheet PDF includes multiple part numbers: SR2030P, SR2020P. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SR2030P, SR2020P
Manufacturer: CUMSUMI
File Size: 607.48 KB
Datasheet: SR2020P-CUMSUMI.pdf
Description: 20A Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SR2030P, SR2020P.
Please refer to the document for exact specifications by model.

Features

* Dual rectifier construction, positive center-tap Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low VF High surge capability Epitaxial construction For use in

Applications

* Guardring for transient protection High temperature soldering guaranteed: 260oC/10seconds,0.17”(4.3mm)lead lengths at 5 lbs. , (2.3kg) tension TO-3P Unit: inch (mm) Mechanical Data Cases: JEDEC TO-3P/TO-247AD molded plastic Terminals: Pure tin plated, lead free. solderable per MIL-STD-750, Method
