SR2090P, SR2020P - 20A Schottky Barrier Rectifiers

CUMSUMI

📥 Download Datasheet

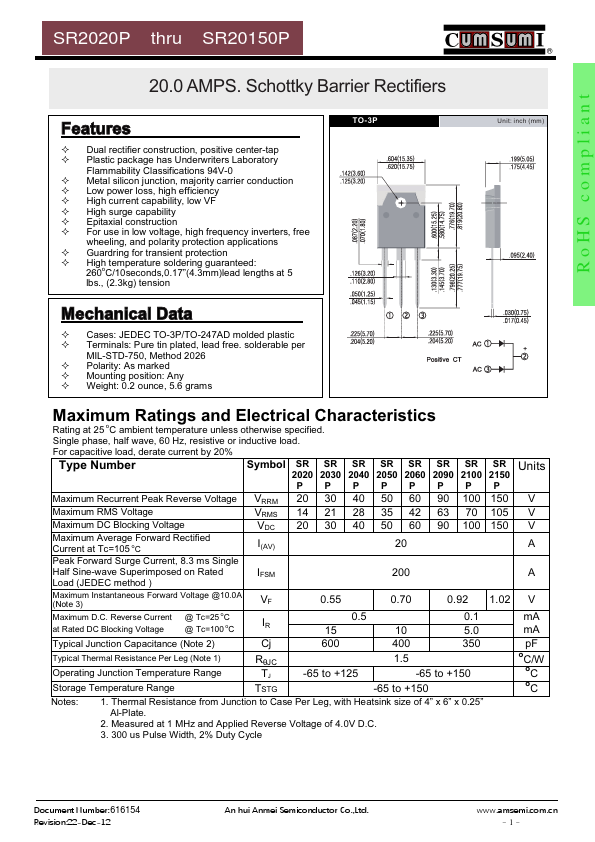

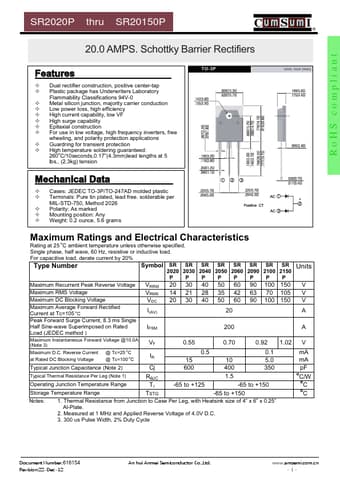

SR2090P Datasheet Preview — This datasheet PDF includes multiple part numbers: SR2090P, SR2020P. Please refer to the document for exact specifications by model.

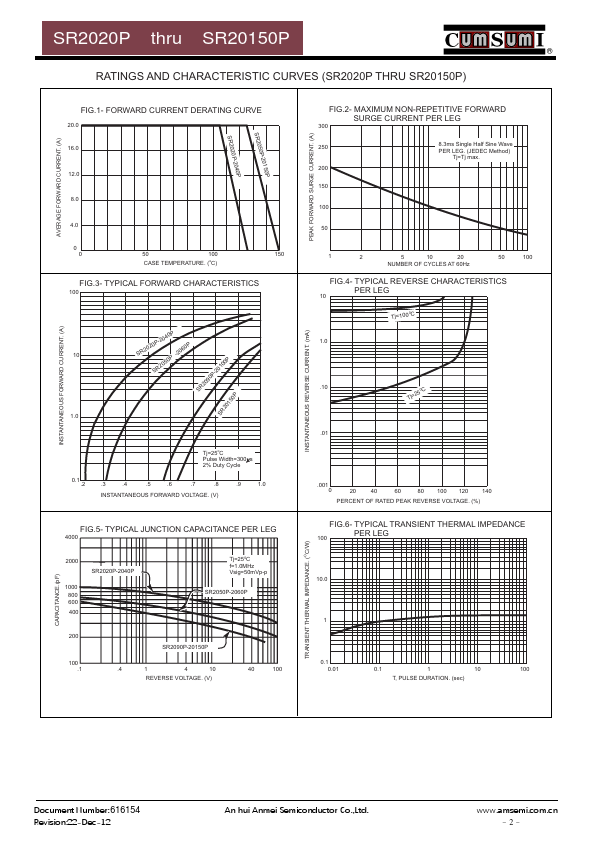

datasheet Preview Page 2

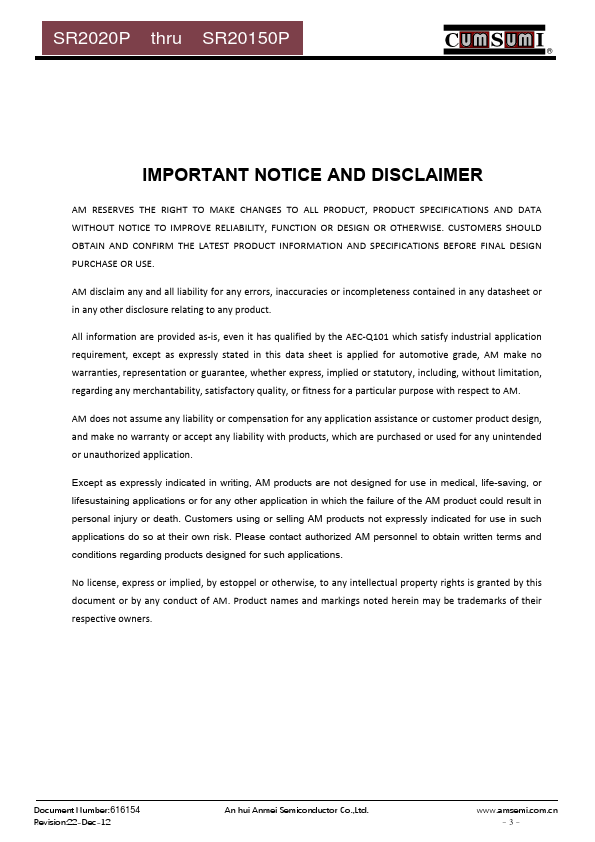

datasheet Preview Page 3

Datasheet Details

Part number	SR2090P, SR2020P
Manufacturer	CUMSUMI
File Size	607.48 KB
Description	20A Schottky Barrier Rectifiers
Datasheet	SR2020P-CUMSUMI.pdf
Note	This datasheet PDF includes multiple part numbers: SR2090P, SR2020P. Please refer to the document for exact specifications by model.

SR2090P Product details

Features

Dual rectifier construction, positive center-tap Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low VF High surge capability Epitaxial construction For use in low voltage, high frequency inverters, free wheeling, and polarity protection.
