SR2100P - 20A Schottky Barrier Rectifiers

Product Overview

CUMSUMI

📥 Download Datasheet

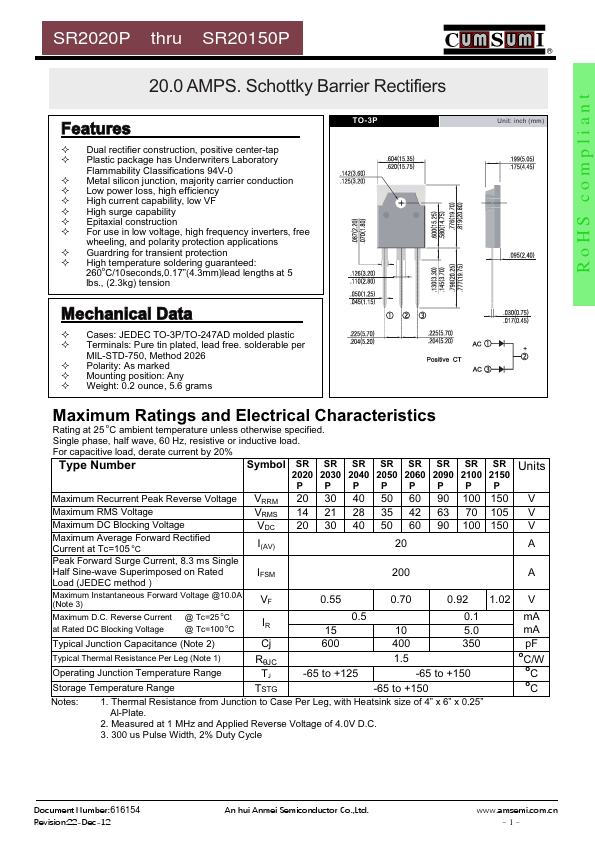

SR2100P 20A Schottky Barrier Rectifiers by CUMSUMI - Datasheet Preview — Datasheet preview – SR2100P

Datasheet Details

Part number	SR2100P
Manufacturer	CUMSUMI
File Size	607.48 KB
Description	20A Schottky Barrier Rectifiers
Datasheet	SR2100P Datasheet
Note	This datasheet PDF includes multiple part numbers: SR2100P, SR2020P. Please refer to the document for exact specifications by model.

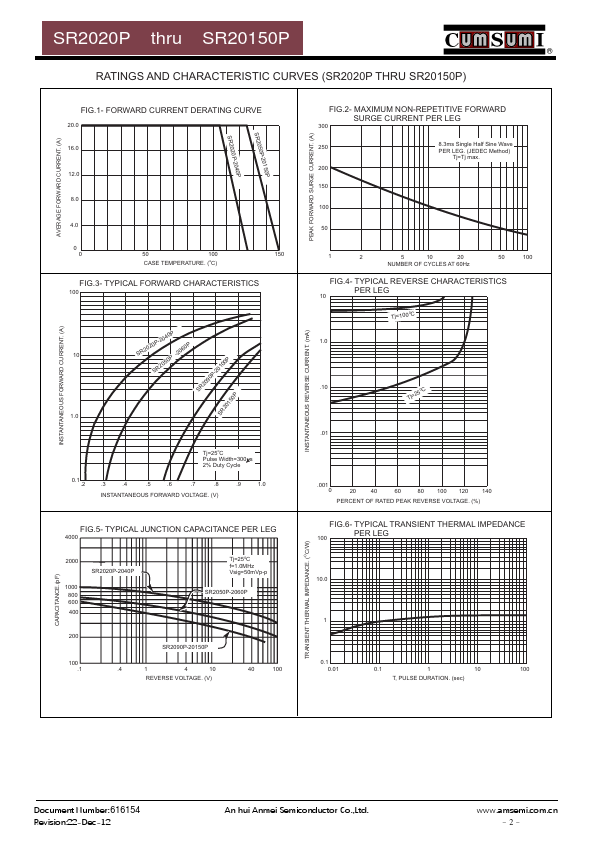

Additional preview pages of the SR2100P datasheet.

Product details

Features

Dual rectifier construction, positive center-tap Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low VF High surge capability Epitaxial construction For use in low voltage, high frequency inverters, free wheeling, and polarity protection.
