GXTS04 Datasheet - CXCAS

High-Accuracy Digital Temperature Sensor

GXTS04 Features

* 

* Fully calibrated and linearized digital output

* Wide supply voltage range, from 1.6 V to 5.5 V

* I2C Interface with communication speeds up to 1MHz and two user selectable addresses

* Typical accuracy of  0.3 °C

* Very fast start-up and measurement time GXTS04 High-Accurac

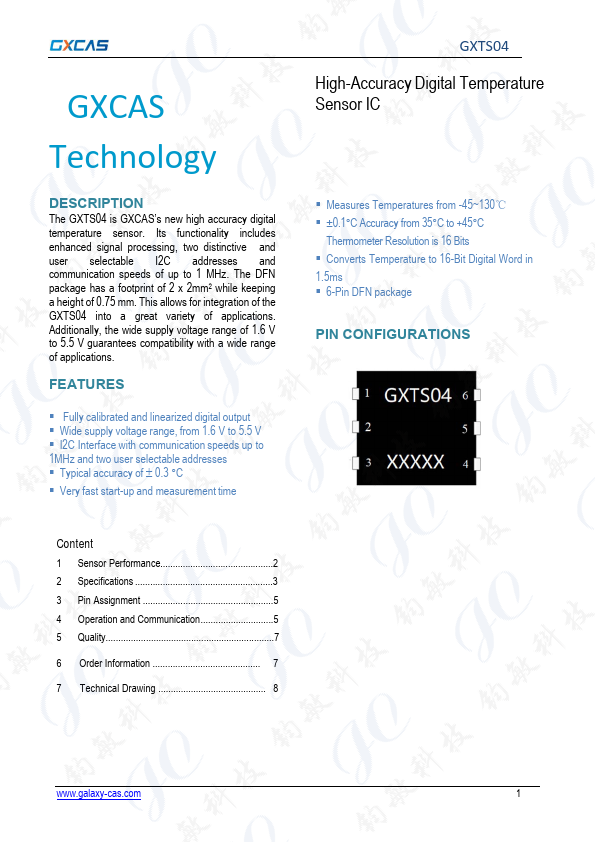

GXTS04 General Description

The GXTS04 is GXCAS’s new high accuracy digital temperature sensor. Its functionality includes enhanced signal processing, two distinctive and user selectable I2C addresses and communication speeds of up to 1 MHz. The DFN package has a footprint of 2 x 2mm2 while keeping a height of 0.75 mm. This al.

GXTS04 Datasheet (620.98 KB)

GXTS04 Datasheet Preview — Preview of GXTS04 PDF

Datasheet Details

Part number:

GXTS04

Manufacturer:

CXCAS

File Size:

620.98 KB

Description:

High-accuracy digital temperature sensor.
