VCHA042A-5R6MS6, VCHA042A-R33MS6 Power Choke Coil

VCHA042A-5R6MS6 Description

CYNTEC CO., LTD.Power Choke Coil VCHA042A MS6 type * .

VCHA042A-5R6MS6 Features

* High performance (Isat) realized by metal dust core. Low profile：Thickness max. 2.1mm Low loss realized with low DCR Compliance with RoHS and Halogen Free AEC-Q200 qualified

VCHA042A-5R6MS6 Applications

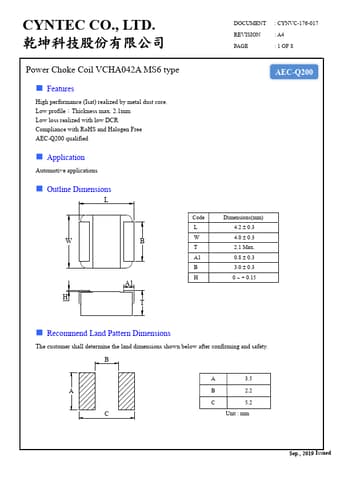

* Outline Dimensions L Code L W BW T A1 B H A1 H T DOCUMENT REVISION PAGE : CYNVC-176-017 : A4 : 1 OF 8 AEC-Q200 Dimensions(mm) 4.2  0.3 4.0  0.3 2.1 Max. 0.8  0.3 3.0  0.3 0 ~ + 0.15
* Recommend Land Pattern Dimensions The customer shall determine the land dimensions shown below af
