ES51986

6000 Count AUTO DMM

ES51986 Features

* 6000 count display

* Full automatic measurement

* Voltage measurement

* Current measurement

* Resistor measurement

* Capacitor measurement (Auto range: 6n to 6mF)

* 60MHz Frequency counter

* Range change function

* Data hold function

ES51986 General Description

ES51986 is an integrated analog-to-digital Converter(ADC) with 6000 counts LCD display ,automatic range selection, and 3V DC power supply. Automatic range selection is provided for voltage(AC/DC) measurement, resistor measurement, current measurement, capacitor measurement, frequency count.

ES51986 Datasheet (282.12 KB)

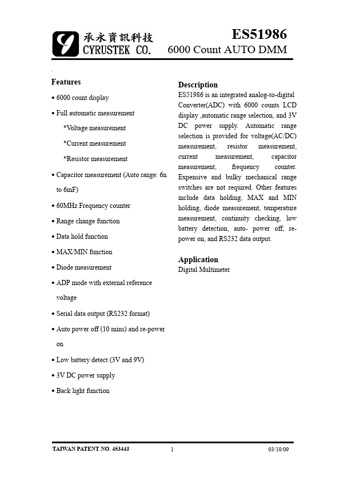

Preview of ES51986 PDF

Datasheet Details

Part number:

ES51986

Manufacturer:

CYRUSTEK

File Size:

282.12 KB

Description:

6000 count auto dmm.
