LM1117-2.5 - 1A Low Dropout Positive Voltage Regulator

This page provides the datasheet information for the LM1117-2.5, a member of the LM1117E3 1A Low Dropout Positive Voltage Regulator family.

Datasheet Summary

Description

Adjustable or Fixed Output The LM1117 series of positive adjustable and fixed Output Current of 1A regulators are designed to provide 1A with high

Low Dropout, 1.4V max at 1A Output Current efficiency.

Good Noise Rejection operate down

📥 Download Datasheet

Datasheet preview – LM1117-2.5

Datasheet Details

Part number LM1117-2.5
Manufacturer CYStech Electronics
File Size 511.22 KB
Description 1A Low Dropout Positive Voltage Regulator
Datasheet download datasheet LM1117-2.5 Datasheet
Additional preview pages of the LM1117-2.5 datasheet.

📁 Similar Datasheet

  • LM1117 - 800mA Low-Dropout Linear Regulator (National Semiconductor)
  • LM1117 - Positive Low Dropout Linear Regulator (AP Semiconductor)
  • LM1117 - 1A L.D.O VOLTAGE REGULATOR (HTC)
  • LM1117 - 800-mA Low-Dropout Linear Regulator (Texas Instruments)
  • LM1117 - 800mA Low-Dropout Linear Regulator (ON Semiconductor)
  • LM1117F - 1A L.D.O. VOLTAGE REGULATOR (HTC)
  • LM1117GS - 1A L.D.O VOLTAGE REGULATOR (HTC)
  • LM1117GSF - 300mA L.D.O VOLTAGE REGULATOR (HTC)
  • LM1117I - 800mA Low-Dropout Linear Regulator (National Semiconductor)
  • LM1117I - 800-mA Low-Dropout Linear Regulator (Texas Instruments)
Other Datasheets by CYStech Electronics
  • LM1117-1.5 - 1A Low Dropout Positive Voltage Regulator
  • LM1117-1.8 - 1A Low Dropout Positive Voltage Regulator
  • LM1117-3.3 - 1A Low Dropout Positive Voltage Regulator
  • LM1117-5.0 - 1A Low Dropout Positive Voltage Regulator
  • LM1117 - 1A Low Dropout Positive Voltage Regulator
  • LM1117E3 - 1A Low Dropout Positive Voltage Regulator
  • LM1101N5 - 300mA High PSRR Low Noise LDO
  • LM103AQ8 - Dual Operational Amplifier

Full PDF Text Transcription

Click to expand full text

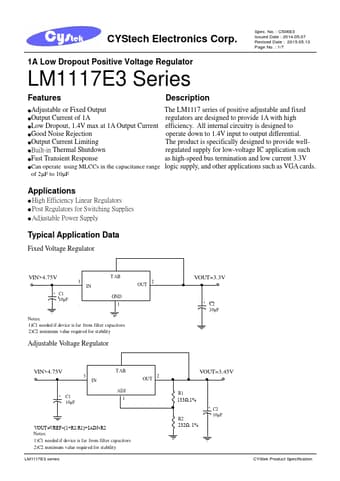

CYStech Electronics Corp. 1A Low Dropout Positive Voltage Regulator LM1117E3 Series Spec. No. : C506E3 Issued Date : 2014.05.07 Revised Date : 2015.05.13 Page No. : 1/7 Features Description ●Adjustable or Fixed Output The LM1117 series of positive adjustable and fixed ●Output Current of 1A regulators are designed to provide 1A with high ●Low Dropout, 1.4V max at 1A Output Current efficiency. All internal circuitry is designed to ●Good Noise Rejection operate down to 1.4V input to output differential. ●Output Current Limiting ●Built-in Thermal Shutdown The product is specifically designed to provide wellregulated supply for low-voltage IC application such ●Fast Transient Response as high-speed bus termination and low current 3.
