LM1117E3 Datasheet - CYStech Electronics

LM1117E3 1A Low Dropout Positive Voltage Regulator

*Adjustable or Fixed Output The LM1117 series of positive adjustable and fixed *Output Current of 1A regulators are designed to provide 1A with high *Low Dropout, 1.4V max at 1A Output Current efficiency. All internal circuitry is designed to *Good Noise Rejection operate down.

LM1117E3 Datasheet (511.22 KB)

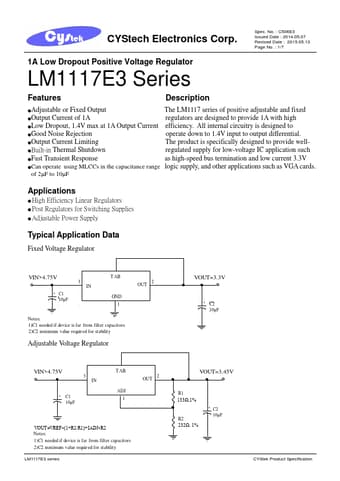

Preview of LM1117E3 PDF

Datasheet Details

Part number:

LM1117E3

Manufacturer:

CYStech Electronics

File Size:

511.22 KB

Description:

1a low dropout positive voltage regulator.
