MTNN8452KQ8 - Asymmetric Dual N-Channel MOSFET

CYStech Electronics

The MTNN8452KQ8 by CYStech Electronics is a Asymmetric Dual N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

MTNN8452KQ8 Asymmetric Dual N-Channel MOSFET by CYStech Electronics - Datasheet Preview — Official preview page of the **MTNN8452KQ8** Asymmetric Dual N-Channel MOSFET datasheet (CYStech Electronics).

Datasheet Details

Part number	MTNN8452KQ8
Manufacturer	CYStech Electronics
File Size	394.89 KB
Description	Asymmetric Dual N-Channel MOSFET
Datasheet	MTNN8452KQ8-CYStechElectronics.pdf

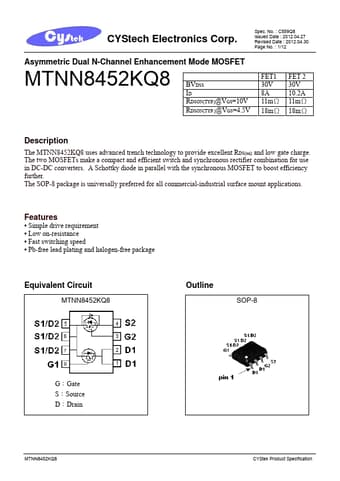

Additional preview pages of the MTNN8452KQ8 datasheet.

MTNN8452KQ8 Product details

Description

BVDSS ID RDSON(TYP.)@VGS=10V RDSON(TYP.)@VGS=4.5V FET1 30V 8A 11mΩ 18mΩ FET 2 30V 10.2A 11mΩ 18mΩ The MTNN8452KQ8 uses advanced trench technology to provide excellent RDS(on) and low gate charge.The two MOSFETs make a compact and efficient switch and synchronous rectifier combination for use in DC-DC converters.A Schottky diode in parallel with the synchronous MOSFET to boost efficiency further.The SOP-8 package is universally preferred for all commercial-industrial surface mount applicat

Features

Simple drive requirement.
Low on-resistance.
Fast switching speed.
Pb-free lead plating and halogen-free package Equivalent Circuit MTNN8452KQ8 Outline SOP-8 G：Gate S：Source D：Drain MTNN8452KQ8 CYStek Product Specification http://www. Datasheet4U. com CYStech Electronics Corp. Absolute Maximum Ratings (TC=25°C, unless otherwise noted) Parameter Drain-Source Breakdown Voltage Gate-Source Voltage Continuous Drain Current (Note 2) Spec. No. : C559Q8 Issued.
