RB521S-40C2 - Small Signal Schottky diode

RB521S-40C2 Description

CYStech Electronics Corp.Small Signal Schottky diode RB521S-40C2 Spec.No.: C302C2 Issued Date : 2003.12.05 Revised Date : 2010.12.10 Page No.: 1/.
Planar silicon Schottky barrier diode encapsulated in a SOD-523 plastic SMD package. Extremely small surface mounting type.

RB521S-40C2 Features

* Extremely small surface mounting type. (SC-79/SOD523)
* IO=200mA guaranteed despite the size.

RB521S-40C2 Applications

* Low current rectification and high speed switching Symbol Outline Absolute Maximum Ratings
* Maximum Temperatures Storage Temperature Tstg -45~+125°C Junction Temperature Tj +125°C
* Maximum Voltages and Currents (Ta=25°C) DC Reverse Voltage VR 40 V Mean Rectifying Current IF 2

📥 Download Datasheet

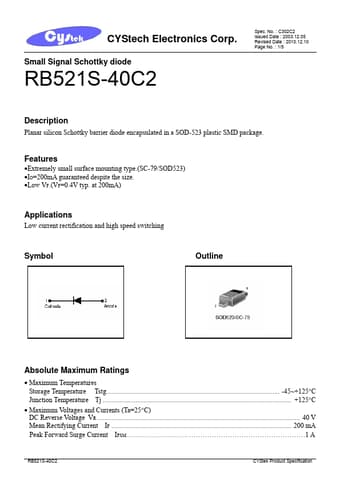

Preview of RB521S-40C2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RB521S-40C2
Manufacturer
CYStech Electronics
File Size
226.12 KB
Datasheet
RB521S-40C2-CYStechElectronics.pdf
Description
Small Signal Schottky diode
