SMCJ40C, SMCJ5.0 - Surface Mount Transient Voltage Suppressors

CYStech Electronics

📥 Download Datasheet

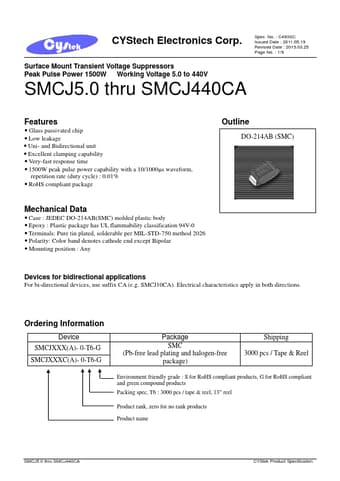

SMCJ40C Datasheet Preview — This datasheet PDF includes multiple part numbers: SMCJ40C, SMCJ5.0. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SMCJ40C, SMCJ5.0
Manufacturer	CYStech Electronics
File Size	458.37 KB
Description	Surface Mount Transient Voltage Suppressors
Datasheet	SMCJ5.0-CYStechElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: SMCJ40C, SMCJ5.0. Please refer to the document for exact specifications by model.

SMCJ40C Product details

Features

Glass passivated chip.
Low leakage.
Uni- and Bidirectional unit.
Excellent clamping capability.
Very-fast response time.
1500W peak pulse power capability with a 10/1000μs waveform, repetition rate (duty cycle) : 0.01%.
RoHS compliant package Outline DO-214AB (SMC) Mechanical Data.
Case : JEDEC DO-214AB(SMC) molded plastic body.
Epoxy : Plastic package has UL flammability classification 94V-0.
Terminals: Pure tin plated, solderable per MIL-STD.
