SMF140A - Surface Mount Transient Voltage Suppressors

Product Overview

CYStech Electronics

Part number	SMF140A
Manufacturer	CYStech Electronics
File Size	561.54 KB
Description	Surface Mount Transient Voltage Suppressors
Datasheet	SMF140A Datasheet
Note	This datasheet PDF includes multiple part numbers: SMF140A, SMF5.0A. Please refer to the document for exact specifications by model.

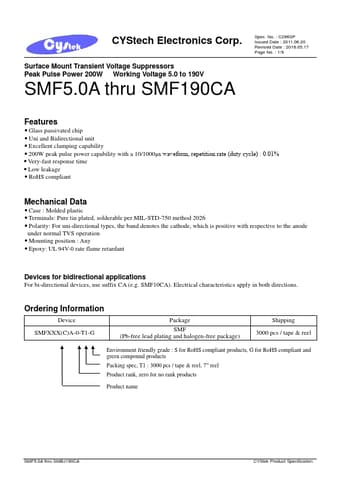

Additional preview pages of the SMF140A datasheet.

Glass passivated chip.
Uni and Bidirectional unit.
Excellent clamping capability.
200W peak pulse power capability with a 10/1000μs waveform, repetition rate (duty cycle) : 0.01%.
Very-fast response time.
Low leakage.
RoHS compliant Mechanical Data.
Case : Molded plastic.
Terminals: Pure tin plated, solderable per MIL-STD-750 method 2026.
Polarity: For uni-directional types, the band denotes the cathode, which is positive with respective to the.
