* Glass passivated chip
* Uni and Bidirectional unit
* Excellent clamping capability
* 200W peak pulse power capability with a 10/1000μs waveform, repetition rate (duty cycle) : 0.01%
* Very-fast response time
* Low leakage
* RoHS compliant Mechanical Data
* Case : Mo
SMF20A
CYStech Electronics
561.54 KB
Surface mount transient voltage suppressors.

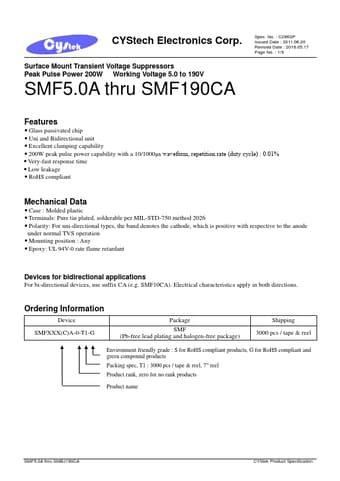

CYStech Electronics Corp. Surface Mount Transient Voltage Suppressors Peak Pulse Power 200W Working Voltage 5.0 to 190V SMF5.0A thru SMF190CA Spec. N.
