D44H11J3 - Low Vcesat NPN Epitaxial Planar Transistor

Product Overview

CYStech

Part number	D44H11J3
Manufacturer	CYStech
File Size	298.78 KB
Description	Low Vcesat NPN Epitaxial Planar Transistor
Datasheet	D44H11J3 Datasheet

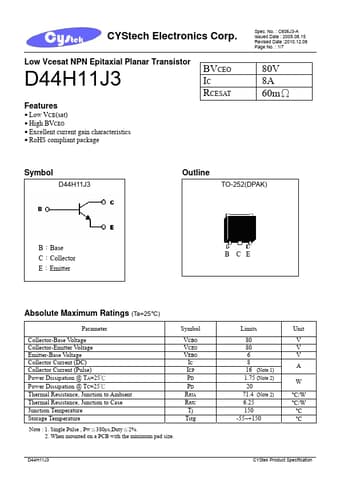

Additional preview pages of the D44H11J3 datasheet.

Low VCE(sat).
High BVCEO.
Excellent current gain characteristics.
RoHS compliant package BVCEO IC RCESAT Spec. No. : C606J3-A Issued Date : 2005.08.15 Revised Date :2010.12.08 Page No. : 1/7 80V 8A 60mΩ Symbol D44H11J3 Outline TO-252(DPAK) B：Base C：Collector E：Emitter B CE Absolute Maximum Ratings (Ta=25°C) Parameter Symbol Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (DC) Collector Current (Pulse) Power Di.
