DTC114YK8S3 - NPN Digital Transistors

CYStech

📥 Download Datasheet

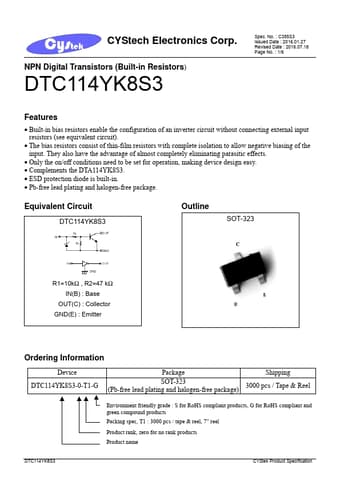

DTC114YK8S3 Datasheet Preview — Preview of DTC114YK8S3 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DTC114YK8S3
Manufacturer	CYStech
File Size	272.14 KB
Description	NPN Digital Transistors
Datasheet	DTC114YK8S3-CYStech.pdf

DTC114YK8S3 Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy.
Complements the DTA114YK8S3.
