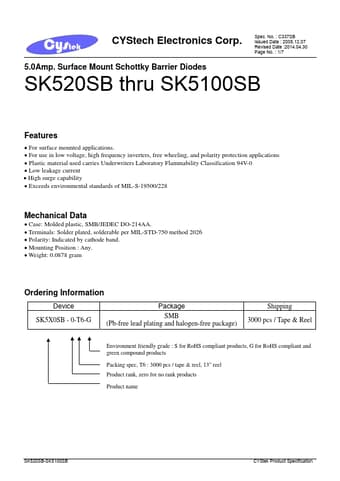

CYStech Electronics Corp.
Spec. No. : C337SB Issued Date : 2005.12.07 Revised Date :2014.04.30 Page No. : 1/7
5.0Amp. Surface Mount Schottky Barrier Diodes
SK520SB thru SK5100SB
Features
• For surface mounted applications. • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications • Plastic material used carries Underwriters Laboratory Flammability Classification 94V-0 • Low leakage current • High surge capability • Exceeds environmental standards of MIL-S-19500/228
Mechanical Data
• Case: Molded plastic, SMB/JEDEC DO-214AA. • Terminals: Solder plated, solderable per MIL-STD-750 method 2026 • Polarity: Indicated by cathode band. • Mounting Position : Any. • Weight: 0.
