MTE8D5N10RQ8 N-Channel Enhancement Mode Power MOSFET

CYStek Electronics

Description

CYStek Electronics Corp.N-Channel Enhancement Mode Power MOSFET MTE8D5N10RQ8 Spec.No.: C169Q8 Issued Date : 2019.09.11 Revised Date : 2023.05.10 P.

📥 Download Datasheet

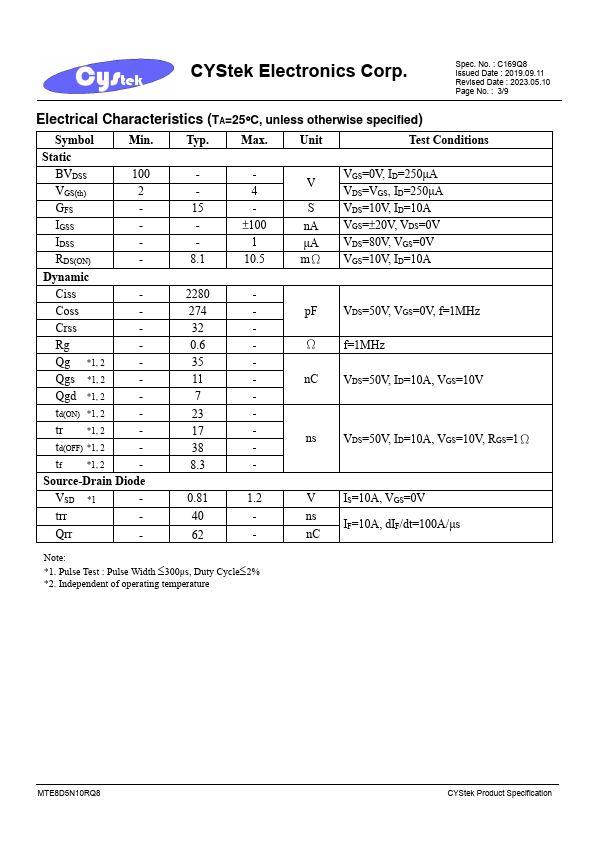

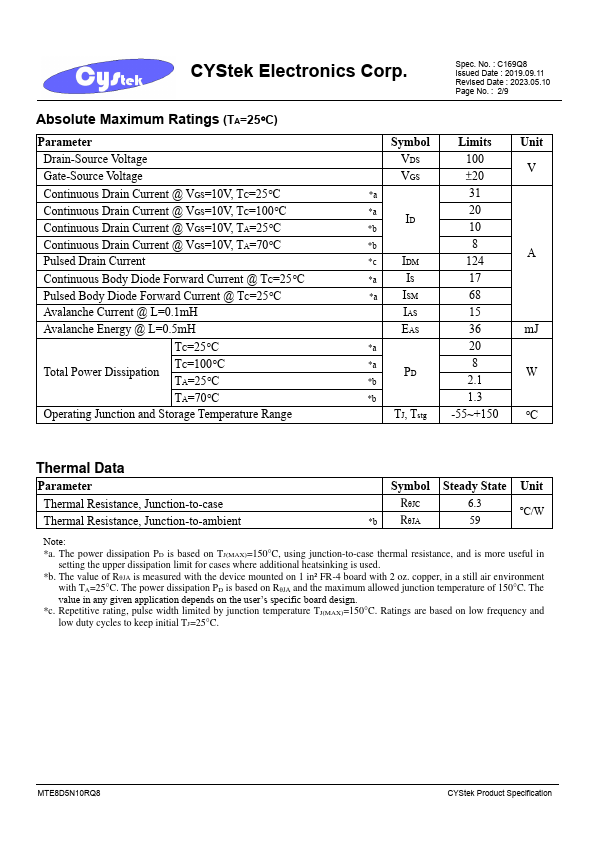

MTE8D5N10RQ8 Datasheet Preview — Preview of MTE8D5N10RQ8 PDF

Datasheet Specifications

Part number: MTE8D5N10RQ8
Manufacturer: CYStek Electronics
File Size: 498.31 KB
Datasheet: MTE8D5N10RQ8-CYStekElectronics.pdf
Description: N-Channel Enhancement Mode Power MOSFET

Features

* Low On Resistance
* Low Gate Charge
* Fast Switching Characteristic BVDSS ID@VGS=10V, TC=25°C ID@VGS=10V, TA=25°C RDS(ON) typ. @ VGS=10V, ID=10A 100V 31A 10A 8.1mΩ Equivalent Circuit MTE8D5N10RQ8 Outline SOP-8 Ordering Information Device MTE8D5N10RQ8-0-TF-G Package
